Bearing, Differential Side: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

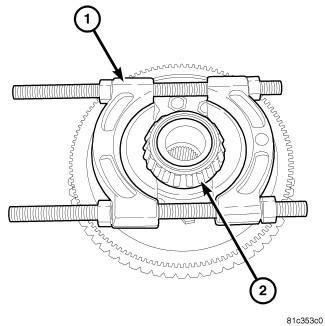

Fig 1: Identifying Differential Bearing & Bearing Splitter

Courtesy of CHRYSLER GROUP, LLC

Install Bearing Splitter (special tool #1130, Splitter, Bearing/Gear) (1) under differential bearing (2).

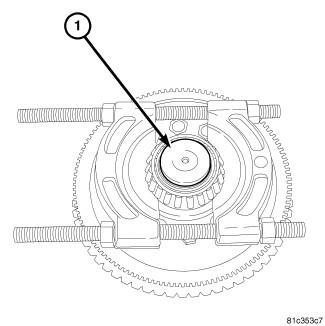

Fig 2: Differential Plug 10067
Courtesy of CHRYSLER GROUP, LLC
Install Plug (special tool #10067, Plug, Differential Bearing) (1) into the differential case.

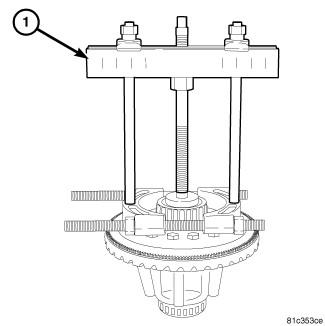

Fig 3: Removing Differential Case Bearing
Courtesy of CHRYSLER GROUP, LLC
Install Bridge (special tool #938, Bridge) (1) on Bearing Splitter (special tool #1130, Splitter, Bearing/Gear) (2) and remove differential case bearings.
