Bearing, Axle Shaft: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

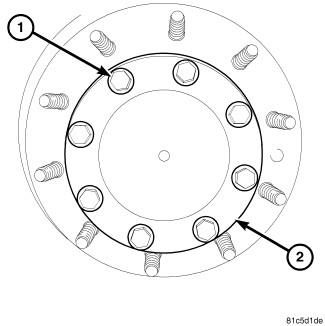

Fig 1: Axle Bolts & Axle Flange

Courtesy of CHRYSLER GROUP, LLC

Remove axle bolts (1) from axle flange (2).

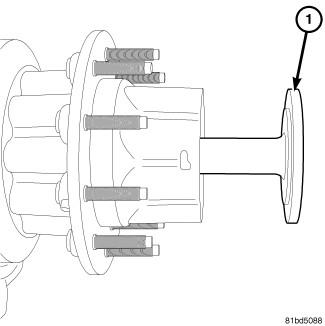

Fig 2: Axle Shaft
Courtesy of CHRYSLER GROUP, LLC
Remove axle shaft (1) from axle.

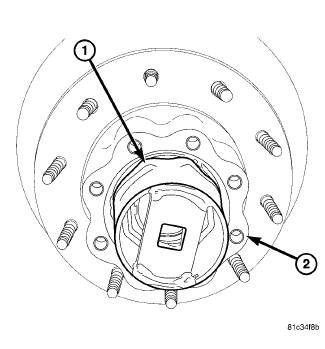

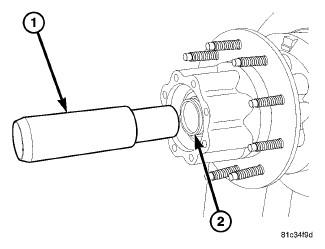

Fig 3: Hub Socket
Courtesy of CHRYSLER GROUP, LLC
With Socket (special tool #10051, Socket, Hub Nut) (1) remove hub nut with integrated lock washer from hub (2) spindle.

Fig 4: Hub/Rotor Guide
Courtesy of CHRYSLER GROUP, LLC
Install hub/rotor Guide (special tool #10064, Guide, Hub) (1) into hub spindle (2).

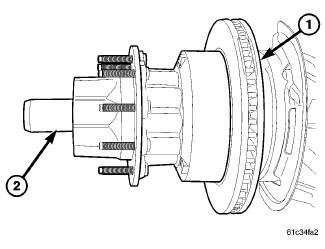

Fig 5: Hub/Rotor
Courtesy of CHRYSLER GROUP, LLC
Slide hub/rotor (1) with bearings off hub spindle and hub/rotor Guide (special tool #10064, Guide, Hub) (2).

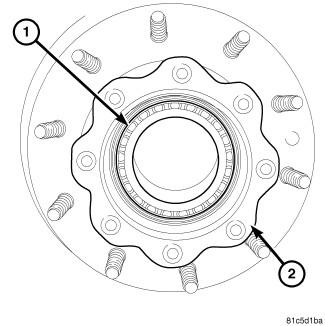

Fig 6: Outer Bearing & Hub
Courtesy of CHRYSLER GROUP, LLC
Remove outer bearing (1) from hub (2).

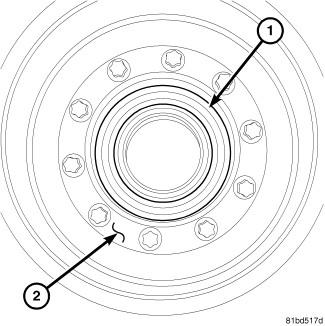

Fig 7: Hub Seal
Courtesy of CHRYSLER GROUP, LLC
Remove hub seal (1) from the back of the hub (2) with seal puller.

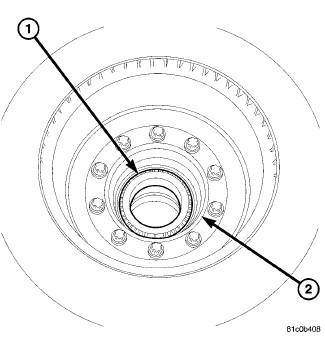

Fig 8: Inner Bearing & Hub
Courtesy of CHRYSLER GROUP, LLC
Remove inner bearing (1) from hub (2).

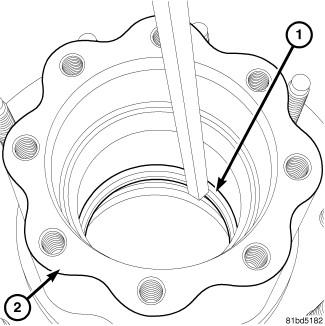

Fig 9: Outer Bearing Cup & Hub
Courtesy of CHRYSLER GROUP, LLC
Remove outer bearing cup (1) from hub (2) with a hammer and brass drift.

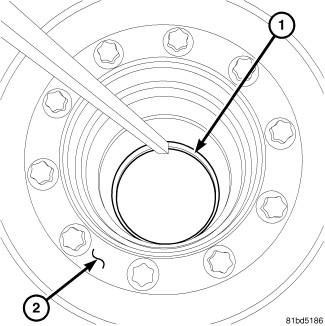

Fig 10: Inner Bearing Cup & Hub
Courtesy of CHRYSLER GROUP, LLC
Remove inner bearing cup (1) from hub (2) with hammer and brass drift.
