Bearing, Differential Side: Removal: Removal
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove differential case from the housing.
- Install Plug (special tool #8964, Plug, Differential Bearing) (4) into the end of the case.

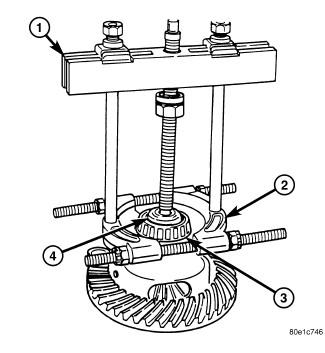

- Remove differential case bearings (3) with Bearing Splitter (special tool #1130, Splitter, Bearing/Gear) (2) and Bridge (special tool #938, Bridge) (1).
