Case Assembly, Differential: Disassembly: Disassembly
WARNING: This page is about a different car, the 2012 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

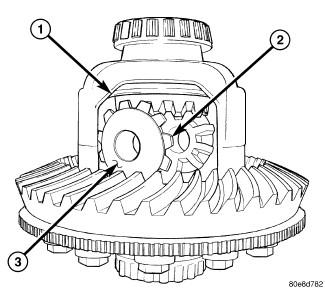

- Rotate both pinion gears (2) with thrust washer (3) to the differential window (1) and remove both gears and thrust washers.
Courtesy of CHRYSLER GROUP, LLC

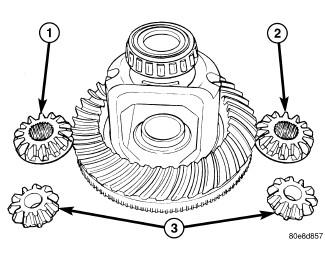

- Remove differential side gears (1) (2) and thrust washers.
