TRAY, Battery: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

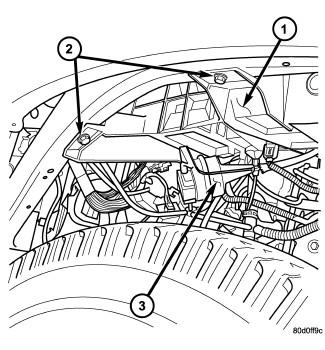

Fig 1: Removing/installing Battery Tray (Left Side) 2 Of 2
GC0083471Courtesy of CHRYSLER LLC
  1. Position the battery tray assembly (1) and install the retaining bolts (2).
  2. Connect the left front fender ground wire.
  3. Install the cruise servo (3) (if equipped) and retaining screws.
  4. Install the left front wheelhouse splash shield. Refer to SHIELD, Splash, Front Wheelhouse , Installation .

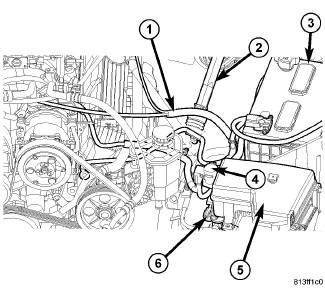

    Fig 2: Removing/installing Battery Tray (Left Side) 1 Of 2
    GC0083470Courtesy of CHRYSLER LLC
  5. Install the anti-lock brake controller (if equipped).
  6. Install the purge solenoid (6) on its mounting bracket.
  7. Connect the wire harness retainers on the battery tray assembly.
  8. Install the Totally Integrated Power Module (TIPM) (5). Refer to MODULE, Totally Integrated Power (TIPM) , Installation .
  9. Install the battery (3). Refer to BATTERY , Installation .
