Motor, Window Regulator, Rear Sliding Window: Removal: Removal

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the rear seats. Refer to SEAT, REAR, REMOVAL or SEAT, MEGA CAB REAR, REMOVAL .
  3. Remove the rear cab back panel. Refer to PANEL, CAB BACK TRIM, REMOVAL .
    Fig 1: Backlite Glass Regulator Mounting Bolts
    GC0091982Courtesy of CHRYSLER GROUP, LLC
  4. Remove the 2 mounting bolts (1).
  5. Disconnect the electrical connector to the power motor.

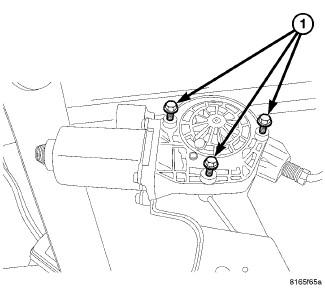

    Fig 2: Motor Screws
    GC0083502Courtesy of CHRYSLER GROUP, LLC
  6. Rotate the assembly and remove the 3 screws (1) that attach the motor to the regulator.
