1500 Light Duty

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Crossmember, Skid Plate & Bolts
GC0088241Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the transfer case skid plate (4) and crossmember (2), if equipped. Refer to PLATE, SKID, TRANSFER CASE, REMOVAL .

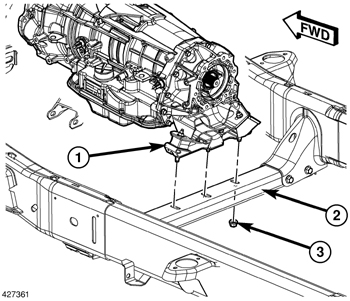

    Fig 2: Transmission Mount, Crossmember & Nuts
    GC0088242Courtesy of CHRYSLER GROUP, LLC
  3. Remove the nuts (3) fastening the transmission mount (1) to the transmission crossmember (2).

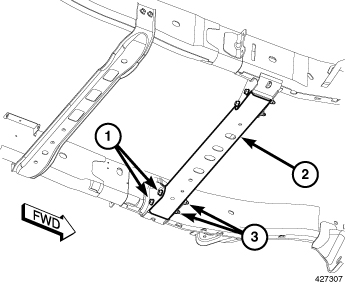

    Fig 3: Crossmember & Bolts
    GC0088243Courtesy of CHRYSLER GROUP, LLC
  4. Support the transmission with a transmission jack or suitable lifting device.
  5. Remove the four bolts (1) and remove the transmission crossmember (2).
