Shaft, Axle: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

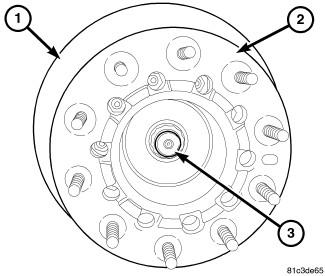

Fig 1: Identifying Axle Shaft Nut, Hub Extension, & Disc Brake Rotor
GC0107747Courtesy of CHRYSLER GROUP, LLC
  1. With the vehicle in neutral, position vehicle on hoist.
  2. Remove brake caliper, caliper adapter, hub extension, rotor and ABS sensor.
  3. Bend axle shaft hub nut (1) collar out of the axle keyway.
  4. Remove axle shaft hub nut (1).

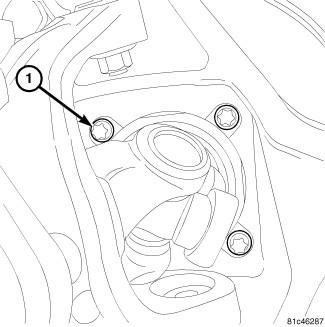

    Fig 2: Hub Bearing Bolts
    GC0107748Courtesy of CHRYSLER GROUP, LLC
  5. Remove four hub bearing bolts (1) from the back of the steering knuckle.
  6. Remove hub bearing from the steering knuckle.

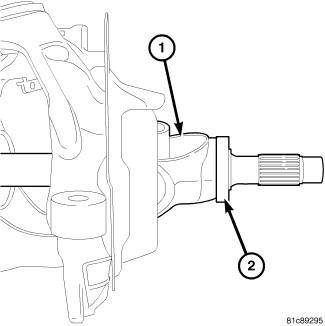

    Fig 3: Axle Shaft
    GC0107749Courtesy of CHRYSLER GROUP, LLC
  7. Remove axle shaft (1) with hub bearing shim (2) from axle.
