Section 117 (Front Axle - 9 1/4 Aa): Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

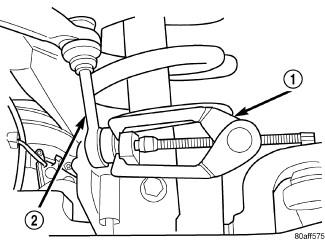

Fig 1: Removing Stabilizer Bar Links
GC0107583Courtesy of CHRYSLER GROUP, LLC
  1. With vehicle in neutral, position vehicle on hoist.
  2. Remove brake calipers and rotors.
  3. Disconnect ABS wheel speed sensors.
  4. Disconnect axle vent hose.
  5. Remove front propeller shaft.
  6. Remove stabilizer bar links (2) at the axle brackets with Puller (special tool #C-3894-A, Puller, Tie Rod) (1).

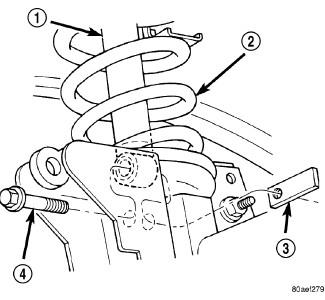

    Fig 2: Shock Absorber Bolts
    GC0107584Courtesy of CHRYSLER GROUP, LLC
  7. Remove shock absorbers (1) bolts (4) from axle brackets.

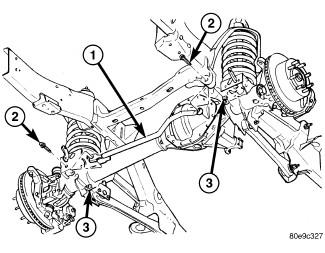

    Fig 3: Track Bar & Bolts
    GC0107585Courtesy of CHRYSLER GROUP, LLC
  8. Remove track bar (1) bolt (2) from the axle bracket.

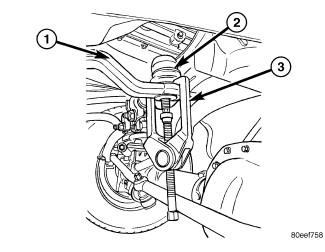

    Fig 4: Removing Tie Rod & Drag Link
    GC0107586Courtesy of CHRYSLER GROUP, LLC
  9. Remove tie rod and drag link (2) with Puller (special tool #C-3894-A, Puller, Tie Rod) (3) from the steering knuckles.

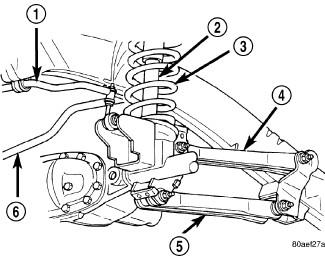

    Fig 5: Upper & Lower Control Arms
    GC0107587Courtesy of CHRYSLER GROUP, LLC
  10. Position lift under the axle assembly and secure axle to lift.
  11. Mark suspension alignment cams for installation reference.
  12. Remove upper control arms (4) and lower control arms (5) from the axle bracket.
  13. Lower the axle. The coil springs will drop with the axle.
  14. Remove coil springs from the axle bracket.
