Section 1154 (BW44-45 Transfer Case (Service Information) 1500): Disassembly: Disassembly

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fill & Drain Plugs

GC0143830

Courtesy of CHRYSLER GROUP, LLC

Place the transfer case so that it can be drained of any remaining fluid and remove the fill (2) and drain plugs (1).

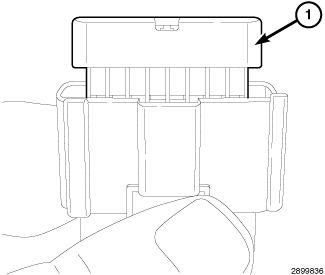

Fig 2: Removing Shift Motor Connector Primary Lock
Courtesy of CHRYSLER GROUP, LLC
Remove the primary lock (1) at the shift motor connector. Carefully disengage the coil wire and remove from the connector.

Fig 3: Shift Motor Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the shift motor mounting bolts (1&2).

Fig 4: Pry Points & Case Half Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove all of the case half bolts (2).
Carefully, using a prybar at pry points (1), separate and remove the rear case half.

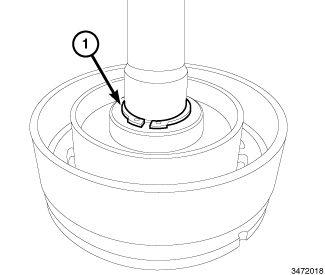

Fig 5: Retaining Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the retaining ring (1).

Fig 6: Lock-Up Rotor
Courtesy of CHRYSLER GROUP, LLC
Remove the lock-up rotor (1).

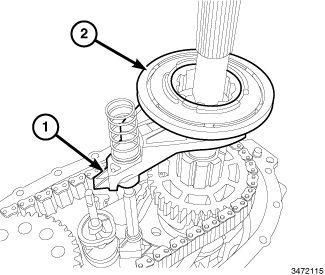

Fig 7: Mode Shift Fork & Lock-Up Assembly
Courtesy of CHRYSLER GROUP, LLC
Remove the mode shift fork (1), spring and the lock-up assembly (2).

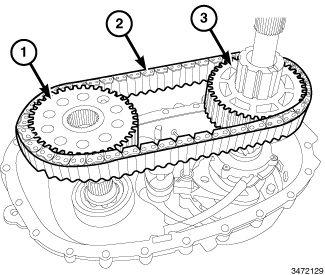

Fig 8: Main Shaft Sprocket, Output Sprocket & Chain
Courtesy of CHRYSLER GROUP, LLC
Remove the chain (2), front output sprocket (1) and main shaft sprocket (3).

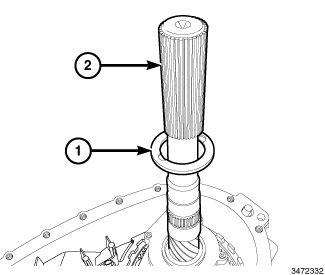

Fig 9: Main Shaft & Lower Thrust Washer
Courtesy of CHRYSLER GROUP, LLC
Remove the lower thrust washer (1) from the main shaft (2).

Fig 10: Removing Magnet
Courtesy of CHRYSLER GROUP, LLC
Remove the magnet (1).

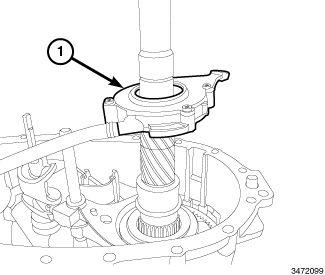

Fig 11: Oil Pump Assembly
Courtesy of CHRYSLER GROUP, LLC
Remove the oil pump assembly (1).

Fig 12: Shift Assembly
Courtesy of CHRYSLER GROUP, LLC
Remove the shift assembly (1).

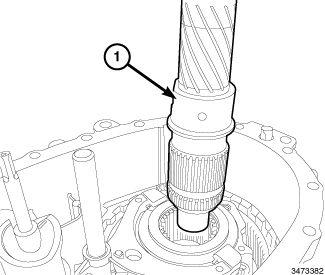

Fig 13: Main Shaft
Courtesy of CHRYSLER GROUP, LLC
Remove the main shaft (1).

Fig 14: Shift Fork & Reduction Hub
Courtesy of CHRYSLER GROUP, LLC
Remove the range shift fork (1), reduction hub, and shift rail (2).

Fig 15: Carrier Assembly & Thrust Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the planetary carrier assembly (1) and thrust bearing (2).

Fig 16: Removing Annulus Gear Retainer
Courtesy of CHRYSLER GROUP, LLC
Remove the annulus gear retainer (1).

Fig 17: Removing Annulus Gear
Courtesy of CHRYSLER GROUP, LLC
Remove the annulus gear (1).

Fig 18: Installing Front Output Shaft Snap Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the front output shaft retaining ring (1) from the front output shaft (2).

Fig 19: Front Output Shaft & Housing
Courtesy of CHRYSLER GROUP, LLC
Remove the front output shaft (1) from the front housing (2).

Fig 20: Removing Convoluted Cover From Coil Wire
Courtesy of CHRYSLER GROUP, LLC
Remove the convoluted cover (1) from the coil wire.
Remove the coil mounting nuts (2).

Fig 21: Removing Lock-Up Coil From Rear Housing
Courtesy of CHRYSLER GROUP, LLC
Remove the lock-up coil (1) from the rear housing.

Fig 22: Removing Front Output Shaft Seal & Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the front output shaft seal.
Using remover (special tool #9622, Installer, Countershaft Plug) (1) and drive handle (special tool #C-4171, Driver Handle, Universal) (2), remove the front output shaft bearing from the case half (3).

Fig 23: Removing Input Shaft Seal & Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the input shaft seal.
Using remover (special tool #9622, Installer, Countershaft Plug) (1) and drive handle (special tool #C-4171, Driver Handle, Universal) (2), remove the input shaft bearing from the case half (3).

Fig 24: Removing Rear Output Shaft Seal & Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove the rear output shaft seal.
Using (special tool #5066, Installer, Bushing) and (special tool #C-4171, Driver Handle, Universal) (1), remove the input shaft bearing from the case half (2).

Fig 25: Removing Front Output Shaft Rear Bearing
Courtesy of CHRYSLER GROUP, LLC
Secure the rear case half.
Using (special tool #7794-A, Remover, Seal) (2) and (special tool #C-637, Slide Hammer, Universal) (1), remove the front output shaft rear bearing (3) from the rear case half.
