Bearing, Drive Shaft Center, Light Duty: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

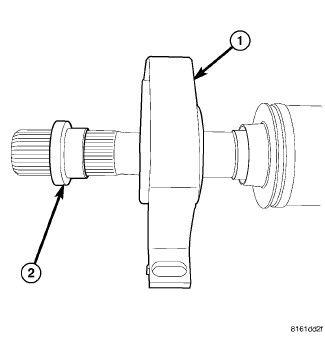

Fig 1: Center Bearing & Collar

Courtesy of CHRYSLER GROUP, LLC

Install new slinger on shaft if removed and drive into position with appropriate installer tool.
Install new center bearing (1) and boot collar (2) on shaft.

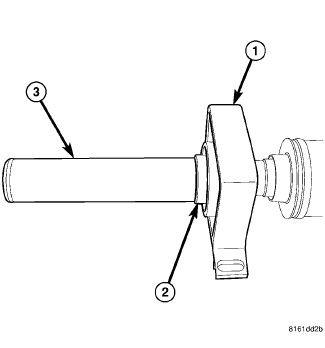

Fig 2: Installing Bearing & Collar
Courtesy of CHRYSLER GROUP, LLC
Install bearing (1) and boot collar (2) on shaft with Installer (special tool #6052, Installer, Bearing/Seal) (3).

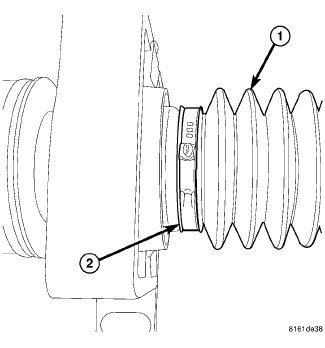

Fig 3: Slip Joint Boot & Clamp
Courtesy of CHRYSLER GROUP, LLC
Clean shaft splines and apply a coat of multi-purpose grease.
Align master splines and slide front and rear half-shafts together.
Position slip yoke boot (1) on boot collar and install clamp (2).
Install propeller shaft in vehicle.
