Weatherstrip, Windshield, A-Pillar: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

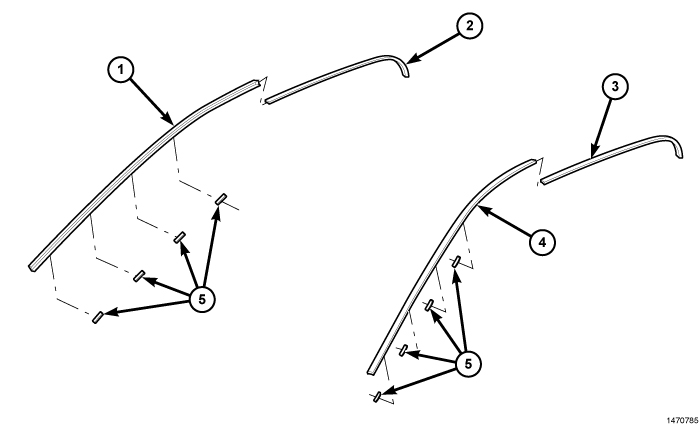

Fig 1: Roof Header Seal
GC0089172Courtesy of CHRYSLER GROUP, LLC
  1. Starting at the rear of the windshield weatherstrip (1) carefully peel the seal away from the sheet metal working towards the front of the vehicle.
  2. Remove the weatherstrip from the retainers along the side of the windshield.
  3. Clean any access adhesive from the sheet metal.
