Passenger Side

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

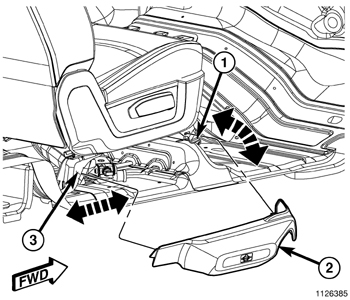

Fig 1: Jack Cover
GC0089071Courtesy of CHRYSLER GROUP, LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, WARNING .
  2. Carefully release the front clip and separate the jack cover (2) from the front of the riser (1).
  3. Carefully pull the cover forward and release the rear hook from the rear of the riser (3).

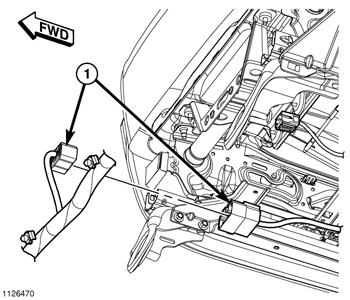

    Fig 2: Front Seat Electrical Connector (Passenger)
    GC0089072Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the electrical connector (1), if equipped.

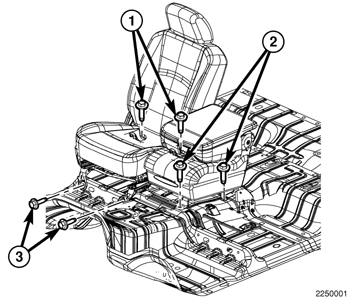

    Fig 3: Seat Bolts
    GC0089073Courtesy of CHRYSLER GROUP, LLC
  5. Remove the front passenger seat bolts (3).
  6. Remove the center seat bolts (2), if equipped with the center seat.
  7. Remove the rear bolts (1) and remove the passenger seat assembly.

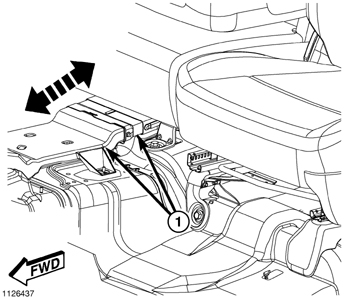

    Fig 4: Rear Air Duct
    GC0089074Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the rear air duct (1) by sliding the telescoping duct section, attached to the seat, rearward.
