Seat, Front: Description: Description
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

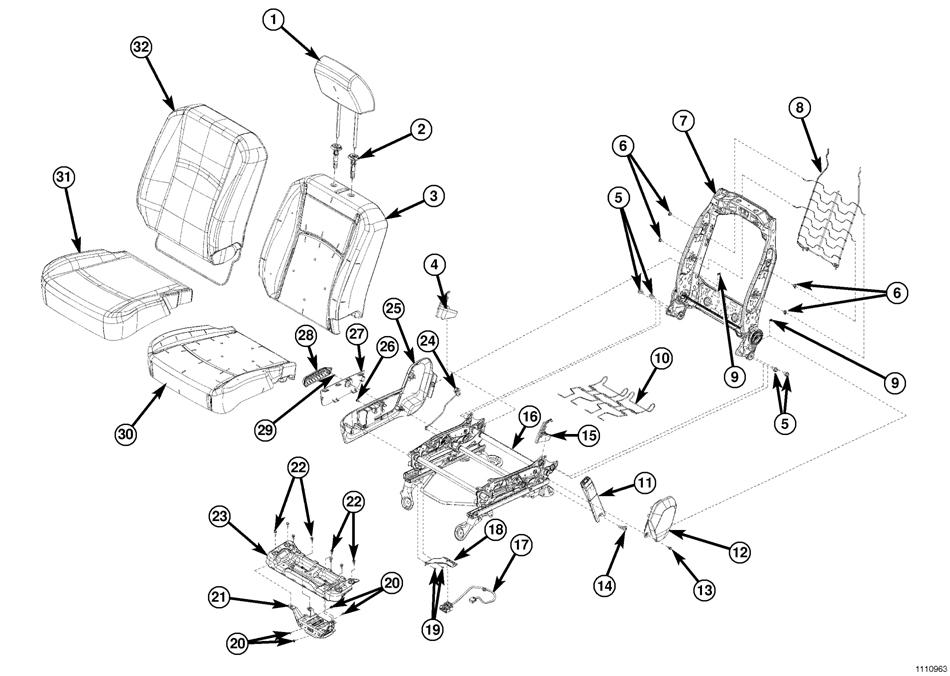

Courtesy of CHRYSLER GROUP, LLC
| 1 - HEADREST |
17 - WIRE HARNESS |
| 2 - HEADREST SLEEVES |
18 - CONNECTOR BRACKET |
| 3 - SEAT BACK FOAM |
19 - BRACKET SCREWS |
| 4 - INNER SIDE SHIELD |
20 - INVERTER ASSEMBLY SCREWS 10 Nm (89 lbf-in) |
| 5 - SEAT BACK BOLTS 40 Nm (30 lbf-ft) |
21 - INVERTER ASSEMBLY |
| 6 - CLIPS (4) |
22 - CUSHION FRAME SCREWS (8) |
| 7 - SEAT BACK FRAME |
23 - CUSHION FRAME |
| 8 - SUPPORT SPRING |
24 - REMOTE ACTUATION LINK |
| 9 - SIDE CUSHION SCREWS - REAR |
25 - OUTER SIDE SHIELD |
| 10 - SEAT CUSHION SUSPENSION MAT |
26 - OUTER SIDE SHIELD SCREW |
| 11 - BELT BUCKLE ASSEMBLY |
27 - SWITCH BEZEL |
| 12 - OUTER SIDE SHIELD |
28 - MANUAL RECLINE HANDLE |
| 13 - SIDE SHIELD SCREW |
29 - CLIP RECLINER LEVER RETAINING |
| 14 - BELT BUCKLE BOLT 50 Nm (37 lbf-ft) |
30 - SEAT CUSHION FOAM |
| 15 - INNER SIDE SHIELD |
31 - SEAT CUSHION COVER |
| 16 - MANUAL ADJUSTER ASSEMBLY |
32 - SEAT BACK COVER |

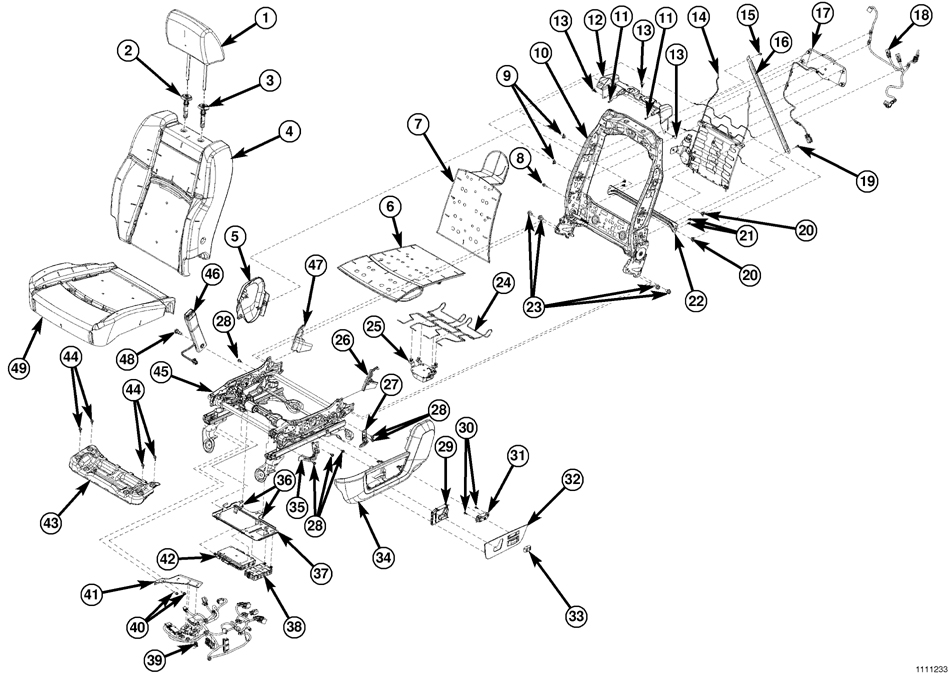

Courtesy of CHRYSLER GROUP, LLC
| 1 - HEADREST |
26 - INNER SIDE SHIELD |
| 2 - HEADREST SLEEVE - SLAVE |
27 - SIDE SHIELD MOUNTING BRACKET |
| 3 - HEADREST SLEEVE - MASTER |
28 - BRACKET SCREWS |
| 4 - SEAT BACK FOAM/COVER |
29 - SEAT POSITION SWITCH |
| 5 - OUTER SIDE SHIELD - INBOARD |
30 - MEMORY SWITCH SCREWS |
| 6 - SEAT CUSHION VENT BAG |
31 - MEMORY SWITCH |
| 7 - SEAT BACK VENT BAG |
32 - SWITCH BEZEL |
| 8 - LUMBAR MOTOR BOLT 10 Nm (89 lbf-in) |
33 - LUMBAR SWITCH |
| 9 - CLIPS (4) |
34 - OUTER SIDE SHIELD |
| 10 - SEAT BACK FRAME ASSEMBLY |
35 - SIDE SHIELD MOUNTING BRACKET |
| 11 - FOAM SUPPORT SCREWS |
36 - MODULE BRACKET SCREWS |
| 12 - PLASTIC FOAM SUPPORT |
37 - MODULE BRACKET |
| 13 - FOAM SUPPORT PUSH PINS |
38 - HEATED SEAT MODULE |
| 14 - LUMBAR ASSEMBLY |
39 - WIRE HARNESS - LOWER POWER HEAT/COOL |
| 15 - DIAGONAL SUPPORT BRACE SCREWS (2) |
40 - BRACKET SCREWS |
| 16 - BACK FRAME DIAGONAL SUPPORT BRACE |
41 - BRACKET |
| 17 - VENTED SEAT BACK BLOWER MOTOR |
42 - MEMORY MODULE |
| 18 - WIRE HARNESS - BACK POWER HEAT |
43 - CUSHION FRAME |
| 19 - DIAGONAL SUPPORT BRACE SCREW |
44 - CUSHION FRAME SCREWS |
| 20 - CLIPS |
45 - 6 WAY POWER ADJUSTER ASSEMBLY |
| 21 - LOWER BACK FRAME BRACE SCREWS (4) |
46 - BELT BUCKLE ASSEMBLY |
| 22 - LOWER BACK FRAME BRACE |
47 - INNER SIDE SHIELD |
| 23 - SEAT BACK BOLTS 40 Nm (30 lbf-ft) |
48 - BELT BUCKLE BOLT 50 Nm (37 lbf-ft) |
| 24 - SEAT CUSHION SUSPENSION MAT |
49 - SEAT CUSHION FOAM/COVER |
| 25 - VENTED SEAT CUSHION BLOWER MOTOR |
|
