Seat, Front Center: Description: Description
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

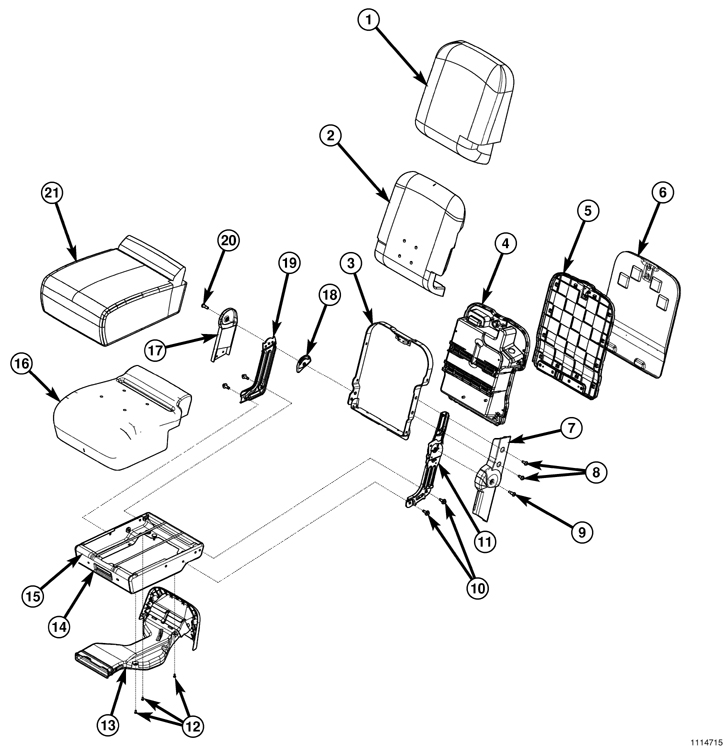

| 1 - SEAT BACK COVER | 12 - HVAC DUCT SCREWS |
| 2 - SEAT BACK FOAM | 13 - HVAC DUCT |
| 3 - SEAT BACK FRAME | 14 - CUSHION FRAME |
| 4 - TRAY | 15 - CUSHION FRAME |
| 5 - INNER LID | 16 - CUSHION FOAM |
| 6 - FOAM PAD - LID | 17 - PIVOT SIDE SHIELD |
| 7 - PIVOT SIDE SHIELD | 18 - PIVOT DETENT GUIDE |
| 8 - INERTIA LATCH BOLTS 25 Nm (18 lbf-ft) | 19 - PIVOT BRACKET |
| 9 - SCREW | 20 - SCREW |
| 10 - INERTIA LATCH BOLTS 25 Nm (18 lbf-ft) | 21 - SEAT CUSHION COVER |
| 11 - INERTIA LATCH ASSEMBLY |

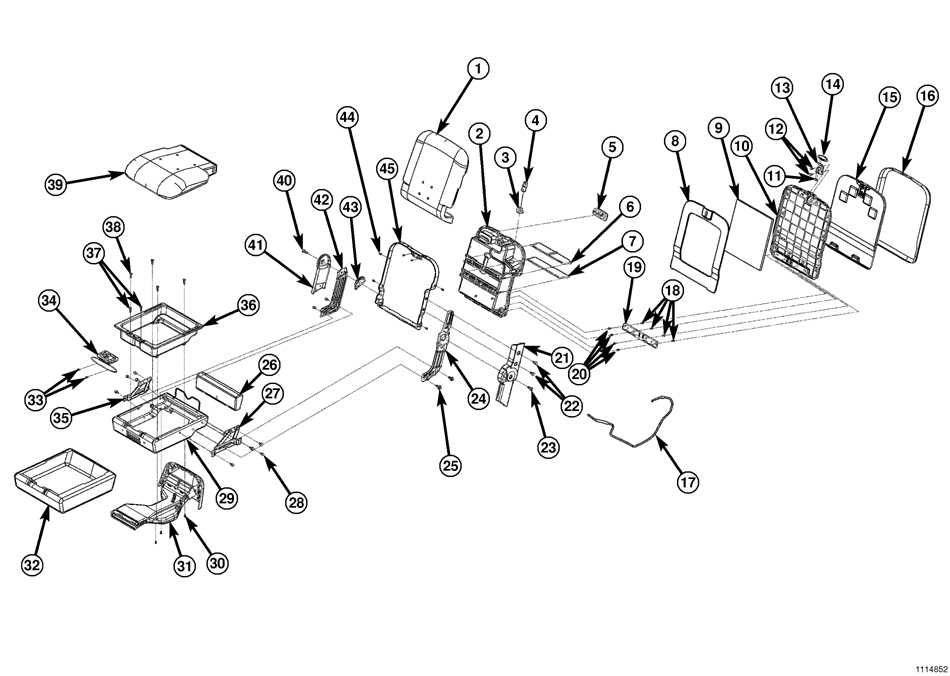

| 1 - SEAT BACK FOAM/COVER | 24 - INERTIA LATCH ASSEMBLY |
| 2 - TRAY | 25 - INERTIA LATCH BOLTS 25 Nm (18 lbf-ft) |
| 3 - POWERPOINT CAP | 26 - FOAM PAD |
| 4 - 12V POWERPOINT | 27 - CUSHION LINKAGE |
| 5 - COIN HOLDER | 28 - LINKAGE SCREWS (8) |
| 6 - DIVIDER | 29 - CUSHION FRAME |
| 7 - REAR DIVIDER | 30 - HVAC DUCT SCREWS |
| 8 - BACK LID BEZEL | 31 - HVAC DUCT |
| 9 - PAD INSERT | 32 - LOWER CUSHION COVER |
| 10 - INNER LID | 33 - SCREWS |
| 11 - SCREWS | 34 - CUSHION LATCH/HANDLE |
| 12 - SCREWS | 35 - CUSHION LINKAGE |
| 13 - LID LATCH | 36 - TRAY |
| 14 - BACK HANDLE | 37 - SCREWS |
| 15 - FOAM PAD - LID | 38 - SCREWS |
| 16 - COVER | 39 - SEAT CUSHION FOAM/COVER |
| 17 - WIRE HARNESS | 40 - SCREW |
| 18 - HINGE SCREWS | 41 - PIVOT SIDE SHIELD |
| 19 - HINGE | 42 - PIVOT BRACKET |
| 20 - HINGE SCREWS | 43 - PIVOT DETENT GUIDE |
| 21 - PIVOT SIDE SHIELD | 44 - SCREWS (6) |
| 22 - INERTIA LATCH BOLTS 25 Nm (18 lbf-ft) | 45 - SEAT BACK FRAME |
| 23 - SCREW |

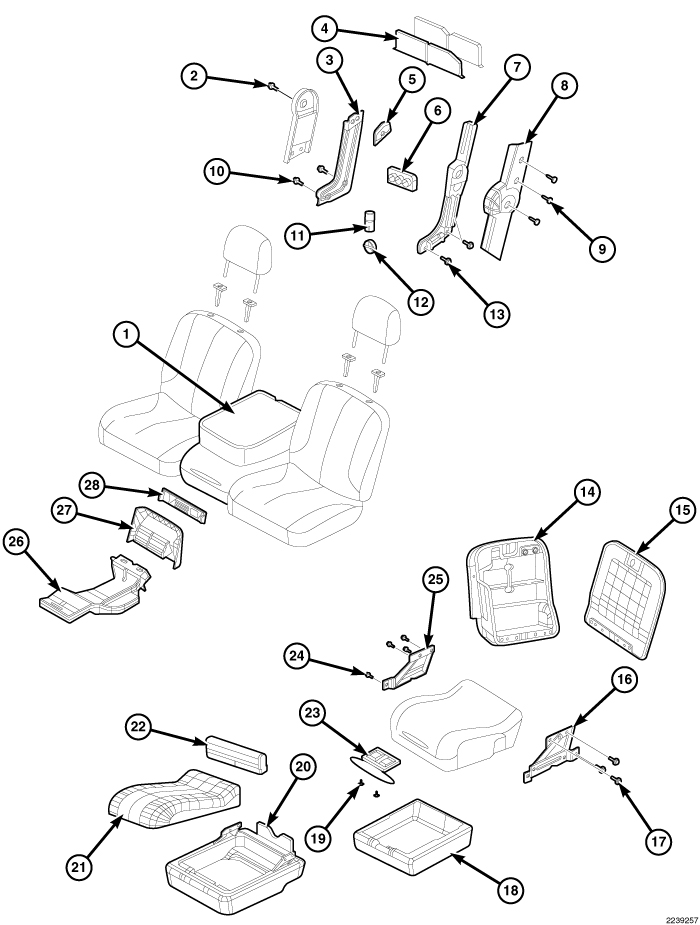

| 1 - CENTER SEAT ASSEMBLY | 15 - STORAGE BIN LID |
| 2 - SHIELD PIVOT SCREWS (2) | 16 - STORAGE COMPARTMENT HINGE |
| 3 - PIVOT BRACKET | 17 - LINKAGE SCREWS (6) |
| 4 - STORAGE BIN DIVIDERS | 18 - ARMREST BIN LID |
| 5 - PIVOT DETENT GUIDE | 19 - BIN LATCH SCREWS (2) |
| 6 - COIN HOLDER | 20 - STORAGE BIN |
| 7 - INERTIA LATCH ASSEMBLY | 21 - BIN LATCH |
| 8 - PIVOT SIDE SHIELD | 22 - BOLSTER |
| 9 - INERTIA LATCH BOLTS 25 Nm (18 lbf-ft) | 23 - BIN LATCH |
| 10 - INERTIA LATCH BOLTS 25 Nm (18 lbf-ft) | 24 - LINKAGE SCREWS (2) |
| 11 - POWER OUTLET | 25 - STORAGE COMPARTMENT HINGE |
| 12 - POWER OUTLET CAP | 26 - VENT |
| 13 - INERTIA LATCH BOLTS 25 Nm (18 lbf-ft) | 27 - ARMREST BEZEL |
| 14 - ARMREST | 28 - ARMREST BEZEL |
