Handle, Latch Release: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Tailgate Control Rod
GC0086821Courtesy of CHRYSLER GROUP, LLC
  1. Open the tailgate and remove the cover and liner, if equipped. Refer to REMOVAL .
  2. Using a grease pencil or equivalent, mark the location of the actuator rods (2) at the control.
  3. Disconnect the actuator rods from the control.

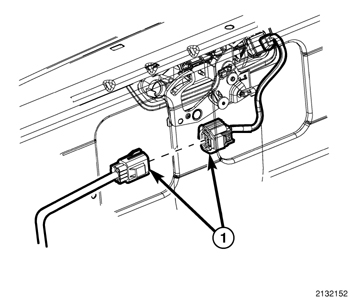

    Fig 2: Backup Camera Electrical Connector
    GC0088939Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the backup camera electrical connector (1), if equipped.

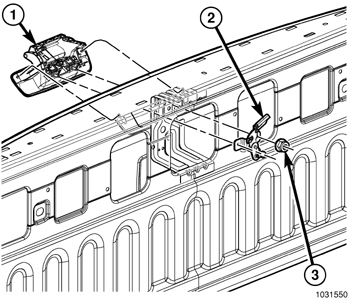

    Fig 3: Tailgate Release Handle & Actuator Rods
    GC0086820Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two nuts (3) that secure the release handle (1) and the control (2) to the tailgate.
  6. Remove the control (2) and the release handle (1) from the tailgate.
