Bracket, Air Suspension Reservoir: Installation: Installation
WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.
WARNING:
Support the vehicle by supplemental means before performing any work on the air suspension system to prevent the vehicle from changing height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without supplemental support, or with pressure in the specific component, can cause possible serious or fatal injury.

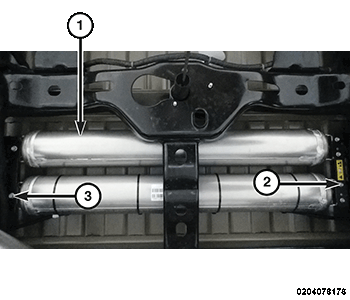

- Position the reservoir tank assembly (1) onto the vehicle frame.
- Install the reservoir bracket retaining fasteners (2, 3) and tighten to 27 N.m (20 ft. lbs.).
- Install the reservoir air line/fitting (3) to the adapter air line connection and tighten to 5.5 N.m (49 in. lbs.).
- Install the box assembly. Refer to BOX, PICKUP, INSTALLATION .
