Bottle, Pressurized Coolant: Installation: Installation

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pressurized Coolant Bottle & Bolts

Courtesy of CHRYSLER GROUP, LLC

Install the pressurized coolant bottle (1). Tighten the bolts (2) to 10 N.m (89 in. lbs.).

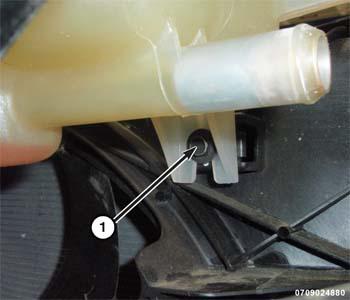

Fig 2: Mounting Bolt
Courtesy of CHRYSLER GROUP, LLC
Install mounting bolts (1) and tighten to 10 N.m (89 in. lbs.).

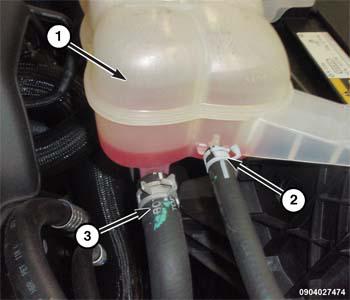

Fig 3: Coolant Recovery Container, Bypass Hose & Supply Hose
Courtesy of CHRYSLER GROUP, LLC
Install the supply hose (3).
Install the return hose (2).

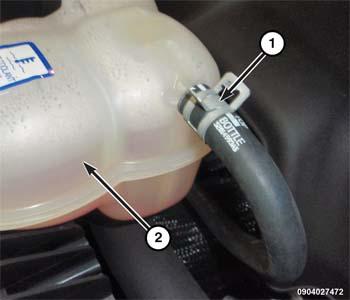

Fig 4: Return Hose & Coolant Recovery Container
Courtesy of CHRYSLER GROUP, LLC
Install the bypass hose (1).
Fill cooling system. Refer to STANDARD PROCEDURE .
Install the pressure cap.
