Tube, Fuel Tank Filler: Installation: Installation

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

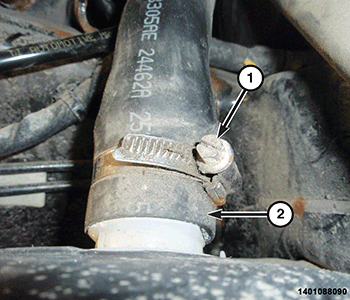

Fig 1: Fuel Filler Hose & Clamp

Courtesy of CHRYSLER GROUP, LLC

Install the fuel filler hose (2) and securely tighten the clamp (1).

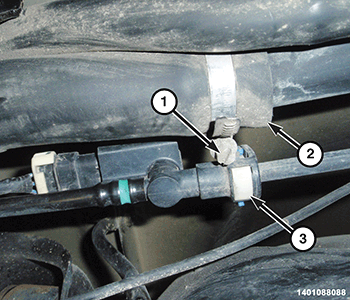

Fig 2: Fuel Tank Filler Tube Vapor Line & Vapor Canister
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel tank filler tube vapor line (1) to the vapor canister (2).

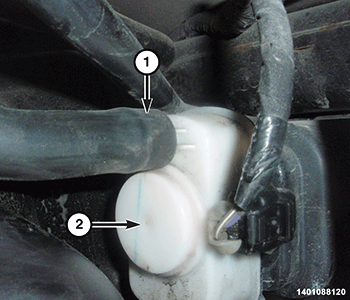

Fig 3: Fuel Filler Tube Ground Wire & Nut
Courtesy of CHRYSLER GROUP, LLC
Install the fuel filler tube ground wire (1) and tighten the nut (2) 15 N.m (11 ft. lbs.).

Fig 4: Vent Tube, Clamp & Quick-Connect Fitting
Courtesy of CHRYSLER GROUP, LLC
Connect the vent tube (3) quick-connect fitting.
Remove the support and lower the vehicle.

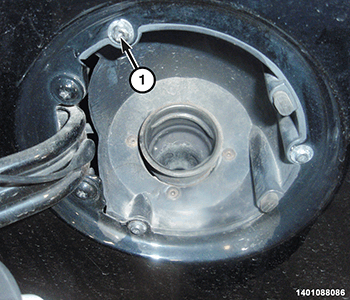

Fig 5: Screws
Courtesy of CHRYSLER GROUP, LLC
Install the fuel filler tube screws (1) and securely tighten.
Connect the negative battery cable.
Start the engine and check for leaks.
