Tube, Fuel Tank Filler: Installation: Installation

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

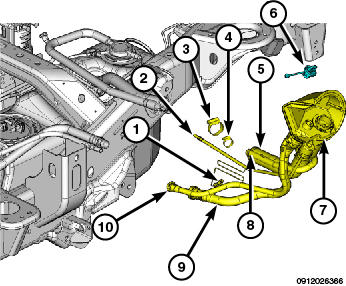

Fig 1: Fuel Vent Line, Hoses & Clamps

Courtesy of CHRYSLER GROUP, LLC

Position and install the fuel tank vapor line (2) onto fuel tank and securely tighten the clamp (4).
Install the fuel filler hose (5) and securely tighten the clamp (3).

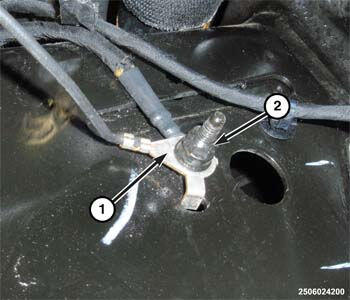

Fig 2: Fuel Filler Tube Ground Wire & Nut
Courtesy of CHRYSLER GROUP, LLC
Install the fuel filler tube ground wire (1) and tighten the nut (2) 15 N.m (11 ft. lbs.).

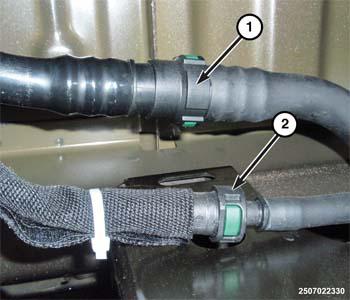

Fig 3: Disconnecting/Connecting DEF Fill Tube & Vent Tube Quick-Connect Fittings
Courtesy of CHRYSLER GROUP, LLC
Connect the DEF fill tube (1) and vent tube (2) quick-connect fitting.

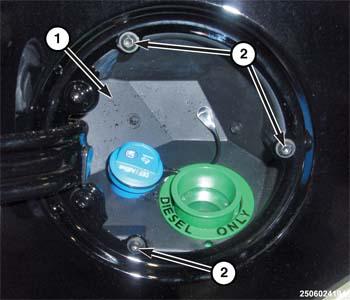

Fig 4: Remove/Install Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the support and lower the vehicle.
Install the fuel filler/DEF fill tube screws (2) and securely tighten.
Connect the negative battery cable.
Start the engine and check for leaks.
