Left Fuel Rail

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Risk of injury to eyes and skin from contact with fuel. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing.

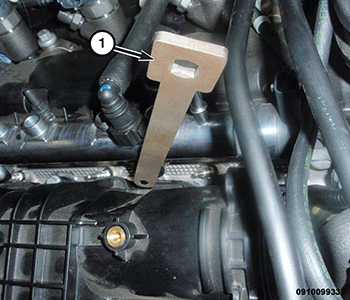

Fig 1: Special Tool Remover-Installer, Fuel Rail Bolt

Courtesy of CHRYSLER GROUP, LLC

Install the fuel rail. Using the (special tool #2025400090, Remover-Installer, Fuel Rail Bolt) (1), tighten the bolts to 25 N.m (18 ft. lbs.).

Fig 2: Fuel Rail Return Line & Fuel Rail Solenoid Connector
Courtesy of CHRYSLER GROUP, LLC
Position the fuel rail return line (2) and connect to the fuel rail.
Connect the fuel pressure solenoid wire harness connector (1).
NOTE:
The fuel tubes must be replaced anytime they are removed.
Install the NEW fuel tubes. Refer to TUBE(S), FUEL, INSTALLATION .
Connect the negative battery cable.
Start engine, allow to warm, turn engine off and inspect for leaks.
