Right Cylinder Head

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right exhaust manifold. Refer to MANIFOLD, EXHAUST, REMOVAL .
  2. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .
  3. Remove the glow plugs.
  4. Remove the right side intake and exhaust camshaft shafts. Refer to CAMSHAFT, ENGINE, REMOVAL .
  5. Remove the followers and tappets and note their original position.

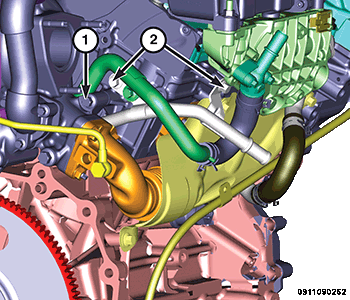

    Fig 1: Turbocharger To Cylinder Head Bolt & Coolant Tube To Cylinder Head Bolt
    GC0173466Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolt (1) securing the turbocharger to the cylinder head.
  7. Remove the bolts (2) securing the coolant tube to the cylinder head.
  8. Remove the water pump housing assembly. Refer to PUMP, WATER, REMOVAL .
    Fig 2: Cylinder Head, Head Gasket, Engine Block & Bolts
    GC0146684Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Do Not  store the cylinder head on the sealing surface.

  9. Remove the bolts (1) and the cylinder head (2) from the engine block (5) and discard head bolts.
  10. Remove and the head gasket (3).
