4WD With Independent Suspension

WARNING: This page is about a different car, the 2016 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

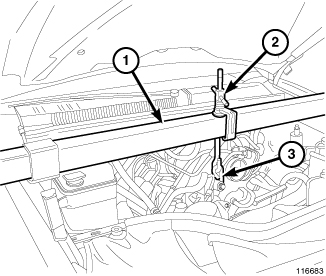

Fig 1: Engine Support Tool
GC0092147Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative cable from the battery.
  2. Install the (special tool #8534B, Fixture, Driveline Support) (1).
  3. Using the handle (2), tighten the lift rod (3) so that the engine will be supported.
  4. Raise the vehicle.
    Fig 2: Identifying Skid Plate And Bolts
    GC0083238Courtesy of CHRYSLER GROUP, LLC
  5. If equipped, remove the skid plate.
    Fig 3: Identifying Suspension Crossmember
    GC0083239Courtesy of CHRYSLER GROUP, LLC
  6. Remove the front crossmember.
    Fig 4: Engine Mounts, Front Axle & Bolts
    GC0152078Courtesy of CHRYSLER GROUP, LLC
  7. Support the front axle (4) with a suitable jack.
  8. Remove the bolts (2 and 5) that attach the engine mounts (1 and 3) to the front axle.
    Fig 5: Pinion Nose Mounting Bolts
    GC0152031Courtesy of CHRYSLER GROUP, LLC
  9. Remove the bolts (1) that attach the front axle pinion housing to the bracket.
  10. Lower the front axle.
    Fig 6: Remove/Install Engine Mount, Heat Shield And Engine Bracket Bolts
    GC0154564Courtesy of CHRYSLER GROUP, LLC
  11. Remove the engine mount heat shield nut (7).
  12. Remove the heat shield (5) from the engine mount insulator bolts.
  13. Remove the inner through bolt (2) from engine mount bracket (1).
  14. Loosen the outer engine bracket bolt (4).
  15. Remove the upper engine mount bracket bolts (2).
  16. Remove the engine mounts from below the vehicle.
