Reservoir, Brake Master Cylinder: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

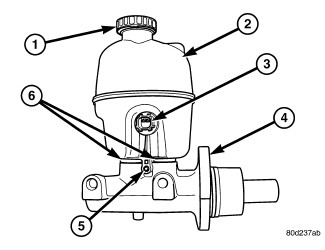

Fig 1: Master Cylinder Fluid Reservoir & Components

Courtesy of CHRYSLER GROUP, LLC

1 - MASTER CYLINDER CAP

2 - FLUID RESERVOIR

3 - FLUID LEVEL SWITCH

4 - MASTER CYLINDER

5 - MOUNTING BOLT

6 - GROMMETS

Install the prop rod on the brake pedal to keep pressure on the brake system.
Remove the reservoir cap (1) and siphon fluid into a drain container. Refer to Fig 1.
Remove the electrical connector from the fluid level switch (3) in the reservoir (2). Refer to Fig 1.
Remove the reservoir mounting bolt (5). Refer to Fig 1.
Remove the reservoir (2) from the master cylinder (4) by pulling upwards.
Remove old grommets from cylinder body. Refer to Fig 1.
