Installing Brake Fluid Level Switch

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All views are typical.

Fig 1: Brake Fluid Level Switch Release Tab
GC0124439Courtesy of CHRYSLER GROUP, LLC
  1. Insert brake fluid level switch (2) into left side of reservoir. Be to push switch in until retaining tab (1) locks into place in reservoir.

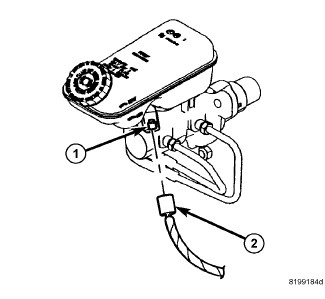

    Fig 2: Fluid Level Switch & Connector
    GC0124438Courtesy of CHRYSLER GROUP, LLC
  2. Connect wiring harness connector (2) to brake fluid level switch (1) mounted in brake fluid reservoir.
