5.7L Engine

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system. Refer to OIL, Refrigerant , Standard Procedure . Failure to properly adjust the refrigerant oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.

NOTE:

When replacing multiple A/C system components, refer to OIL, Refrigerant , Standard Procedure  to determine how much oil should be added to the refrigerant system.

NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is disconnected. Failure to replace the rubber O-ring seals and metal gaskets could result in a refrigerant system leak.

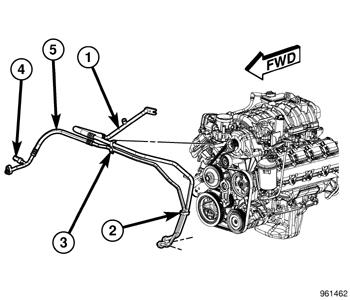

Fig 1: Refrigerant Lines
GC0089598Courtesy of CHRYSLER LLC
NOTE:

Illustration shown with refrigerant lines removed for clarity.

  1. Remove the plugs or tape from the opened suction line fittings and the expansion valve and compressor ports.
  2. Lubricate new O-ring seals with clean refrigerant oil and install them and new gaskets onto the suction line fittings. Use only the specified O-ring seals as they are made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.
  3. Position the A/C suction line (1) into the engine compartment.
  4. Install the two retaining brackets (2 and 3) that secure the A/C suction line (1) to the A/C discharge line (5) and to the upper front of the engine.

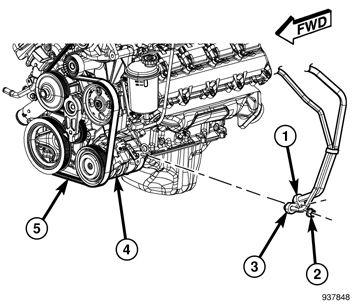

    Fig 2: Accessory Drive Belt
    GC0089585Courtesy of CHRYSLER LLC
  5. Connect the A/C suction line (1) to the A/C compressor (4).
  6. Install the nut (2) that secures the A/C suction line to the A/C compressor. Tighten the nut to 23 N.m (17 ft. lbs.).

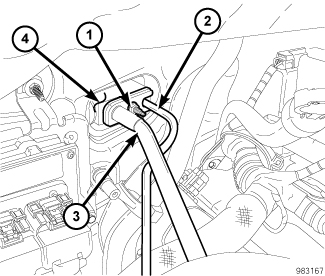

    Fig 3: A/C Expansion Valve
    GC0089599Courtesy of CHRYSLER LLC
  7. Connect the A/C liquid line (2) and the A/C suction line (3) to the A/C expansion valve (4).
  8. Install the nut (1) that secures the A/C liquid and suction lines the A/C expansion valve. Tighten the nut to 23 N.m (17 ft. lbs.).
  9. Install the air filter housing cover and engine air inlet tube. Refer to BODY, Air Cleaner , Installation , 3.7L , BODY, Air Cleaner , Installation , 4.7L , BODY, Air Cleaner , Installation , 5.7L , or BODY, Air Cleaner , Installation , 6.7L .
  10. Reconnect the negative battery cable.
  11. Evacuate the refrigerant system. Refer to Plumbing , Standard Procedure .
  12. Adjust the refrigerant oil level. Refer to OIL, Refrigerant , Standard Procedure .
  13. Charge the refrigerant system. Refer to Plumbing , Standard Procedure .
