6.7L Diesel Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to the applicable Warnings Plumbing , Warning and Cautions Plumbing , Caution for this system before performing the following operation. Failure to follow these instructions may result in possible serious or fatal injury.
NOTE:

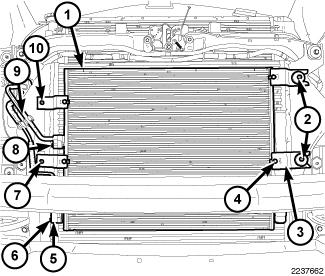

A/C condenser for manual transmission model shown in illustration. shown in illustration with front fascia removed for clarity. Automatic transmission model similar.
- Recover the refrigerant from the refrigerant system. Refer to Plumbing , Standard Procedure .
- Remove the grille.
- If equipped, disconnect the automatic transmission cooler lines from the transmission fluid cooler fittings located at each end of the A/C condenser (1). Refer to TUBES AND HOSES, Transmission Oil Cooler , Standard Procedure .
- Remove the bolts (6 and 8) that secure the A/C liquid line (5) and the A/C discharge line (9) from the A/C condenser.
- Disconnect the A/C liquid and discharge lines from the A/C condenser and remove and discard the O-ring seals and gaskets.
- Install plugs in, or tape over the opened refrigerant line fittings and condenser ports.
- Remove the four bolts (2, 7 and 10) that secure the A/C condenser to the charge air cooler.
- Remove the A/C condenser from the engine compartment.
- If required, remove the four bolts (4) that secure the four retaining brackets (3) to the A/C condenser and remove the brackets. Replace the rubber isolators if necessary.
