6.7L Diesel Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to the applicable warnings Plumbing , Warning and cautions Plumbing , Caution for this system before performing the following operation. Failure to follow these instructions may result in possible serious or fatal injury.
NOTE:
The A/C compressor may be removed and repositioned without disconnecting the refrigerant lines or discharging the refrigerant system. Discharging is not necessary if servicing the compressor clutch, clutch coil or engine.
NOTE:
Illustration shown in illustration with lower radiation hose removed for clarity.
- Disconnect and isolate the negative battery cable.
- Recover the refrigerant from the refrigerant system. Refer to Plumbing , Standard Procedure .
- Remove the air filter housing.
- Remove the turbocharger outlet tube.
- Remove the nuts (1) that secure the A/C suction line (3) and the A/C discharge line (4) to the A/C compressor (2).
- Disconnect the A/C suction and discharge lines from the A/C compressor and remove and discard the O-ring seals and gaskets.
- Install plugs in, or tape over the opened refrigerant line fittings and compressor ports.
- Remove the accessory drive belt. Refer to BELT, Serpentine , Removal .
- Disconnect the engine wire harness (1) from the A/C clutch coil connector (5).

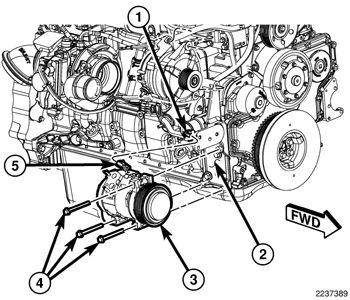

- Remove the three bolts (4) that secure the A/C compressor (3) to the mounting bracket (2) and remove the compressor.
