Front Outer Air Outlets

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable and wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

The front outer instrument panel air outlets can be serviced separately. The center instrument panel air outlets are serviced with the instrument panel center bezel. Refer to BEZEL, Instrument Panel, Center , Removal .

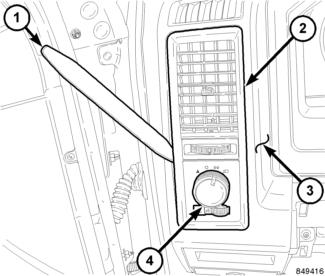

Fig 1: Instrument Panel Air Outlet

Courtesy of CHRYSLER LLC

NOTE:

Driver side air outlet shown in illustration. Passenger side outlet similar.

Using Trim Stick (special tool #C-4755, Trim Stick) (1) or equivalent, carefully disengage the retaining tabs that secure each outer instrument panel air outlet (2) to the instrument panel cover (3) and remove the outlet.
If servicing the driver side air outlet, disconnect the head lamp switch wiring harness from the head lamp switch (4) and if required, remove the switch from the outlet bezel. Refer to SWITCH, Headlamp , Removal .
