Rear Seat Air Outlets

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The air outlets are retained into the air outlet housing by eight retaining tabs. The air outlets must be first installed onto the bottom set of retaining tabs, then the upper set of tabs can be engaged.

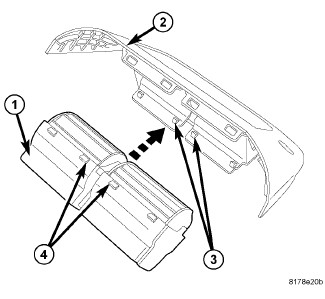

Fig 1: Identifying Rear Air Outlets, Retaining Tabs, And Housing

Courtesy of CHRYSLER LLC

Position the rear air outlets (1) to the back of the rear air outlet housing (2) and engage the lower set of retaining tabs (3).
Gently engage the upper set of retaining tabs (4). Make sure all of the retaining tabs are fully seated.

Fig 2: Identifying Rear Air Outlet Housing
Courtesy of CHRYSLER LLC

NOTE:
Illustration shown with front seat cushions removed for clarity.
Position the rear air outlet housing (2) to the rear of the front center seat support (3).
Install the two screws (1) that secure the rear air outlet housing to the center seat support. Tighten the screws to 2.2 N.m (20 in. lbs.).
