Air Inlet Housing

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

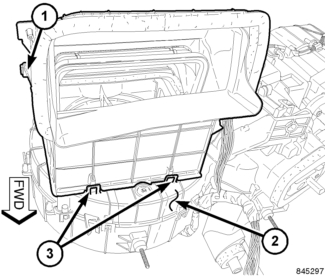

Fig 1: Front Of The Air Inlet Housing
GC0089545Courtesy of CHRYSLER LLC
NOTE:

If the foam seal on the air inlet housing is deformed or damaged, it must be replaced.

  1. Position the air inlet housing (1) onto the top of the HVAC housing (2).
  2. Engage the two retaining tabs (3) that secure the front of the air inlet housing to the HVAC housing.

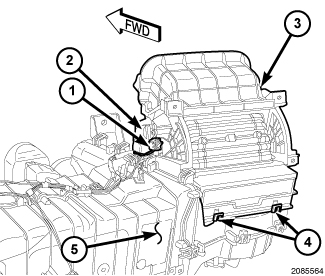

    Fig 2: Air Inlet Housing
    GC0089544Courtesy of CHRYSLER LLC
  3. Engage the two retaining tabs (4) that secure the rear of the air inlet housing (3) to the HVAC housing (5).
  4. Connect the HVAC wire harness (1) to the recirculation door actuator (2).
  5. Install the HVAC housing assembly. Refer to HOUSING, HVAC , Installation .
