SENSOR, Infrared Temperature: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

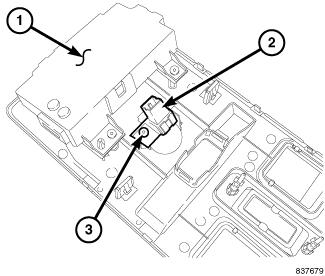

Fig 1: Infrared Sensor
GC0089527Courtesy of CHRYSLER LLC
  1. Position the infrared sensor (2) onto the overhead console (1).
  2. Install the screw (3) that secures the infrared sensor to the overhead console. Tighten the screw to 1.1 N.m (10 in. lbs.).
  3. Install the overhead console. Refer to CONSOLE, Overhead, Front , Installation .
  4. Reconnect the negative battery cable.
