Reservoir, Power Steering Pump: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain and siphon the power steering fluid from the reservoir.
  2. Remove the serpentine belt.
  3. Remove the power steering pump. Refer to PUMP, REMOVAL .

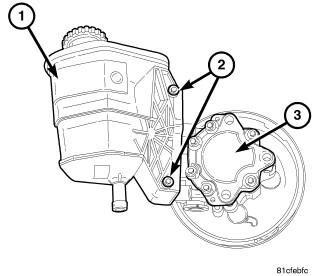

    Fig 1: Reservoir & Mounting Bolts
    GC0092302Courtesy of CHRYSLER GROUP, LLC
  4. Remove the reservoir mounting bolts (2).
  5. Remove the reservoir (1).
  6. Remove the rear bracket to the pump mounting bolts (if equipped).
