RH - Drag Link To Tie Rod

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All views are typical.

Fig 1: Link And Coil Steering System Components
GC0143914Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the wheel.
  3. Remove tie rod to knuckle nut (1).
  4. Remove the drag link to tie rod retaining nut (10).
  5. Loosen the nut/bolt on the tie rod adjuster sleeve (7).

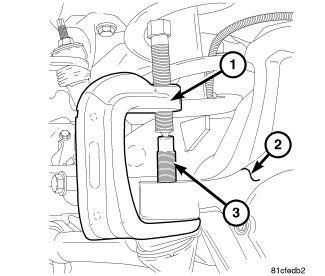

    Fig 2: Tie Rod Puller
    GC0108922Courtesy of CHRYSLER GROUP, LLC
  6. Remove tie rod (3) from the knuckle (2) and the drag link from the tie rod with (special tool #8677, Remover, Ball Joint) (1).
  7. Remove the tie rod end from the adjuster sleeve.
