To Pitman Arm

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All views are typical. 2500 shown in illustration, others similar.

Fig 1: Link And Coil Steering System Components
GC0143914Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the drag link to pitman arm nut (5).
  3. Loosen the nut/bolt on the tie rod adjuster sleeve (3).

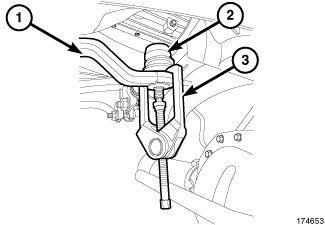

    Fig 2: Draglink Removal
    GC0108919Courtesy of CHRYSLER GROUP, LLC
    1 - PITMAN ARM
    2 - DRAG LINK
    3 - C -3894-A PULLER
  4. Remove the drag link (2) from the pitman arm (1), with (special tool #C-3894-A, Puller, Tie Rod) (3).
  5. Remove the drag link from the adjuster sleeve.
