Coupling, Steering Column, Lower: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Lock the steering wheel with the wheels in the straight position.
  4. Remove the left front tire and wheel assembly.
    Fig 1: Lower Coupling & Pinch Bolt
    GC0088319Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Mark both lower coupling (5) connections for proper installation.

  5. Remove and discard the lower coupling upper pinch bolt (1).

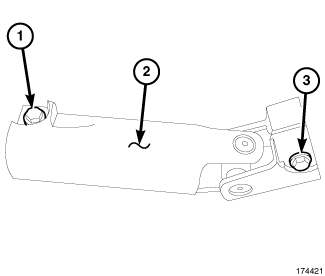

    Fig 2: Lower Steering Coupler
    GC0092285Courtesy of CHRYSLER GROUP, LLC
  6. Remove and discard the lower coupling lower pinch bolt (1).
  7. Remove the lower steering shaft coupling (2).
