Stabilizer Link

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Retainer, Grommet, Stabilizer Bar, Axle Bracket & Stabilizer Link

Courtesy of CHRYSLER GROUP, LLC

1 - RETAINER

2 - GROMMET

3 - STABILIZER BAR

4 - AXLE BRACKET

5 - STABILIZER LINK

Raise and support the vehicle.
Hold the stabilizer link (5) shafts with a wrench and remove the link nuts at the stabilizer bar (3).
Remove the retainers (1) and grommets (2) from the stabilizer bar links (5).

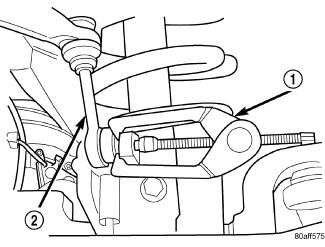

Fig 2: Stabilizer Link
Courtesy of CHRYSLER GROUP, LLC

1 - PULLER

2 - LINK
Remove the stabilizer bar link nuts from the axle brackets.
Remove the links (2) from the axle brackets with Puller (special tool #C-3894-A, Puller, Tie Rod) (1). Refer to Fig 2.
