4500 And 5500

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tie-rod or drag link end from the steering knuckle arm.
    Fig 1: Disc Brake Caliper & Bolts
    GC0107545Courtesy of CHRYSLER GROUP, LLC
  2. Remove the disc brake caliper bolts (1) and the disc brake caliper (2).
    Fig 2: Disc Brake Caliper Adapter & Bolts
    GC0107546Courtesy of CHRYSLER GROUP, LLC
  3. Remove the disc brake caliper adapter bolts (1) and remove the adapter (2).
    Fig 3: Disc Brake Rotor, Hub Extension & Axle Shaft Nut
    GC0107539Courtesy of CHRYSLER GROUP, LLC
  4. Remove the disc brake rotor (1) and the hub extension (2).
    Fig 4: Wheel Speed Sensor & Bolt
    GC0107540Courtesy of CHRYSLER GROUP, LLC
  5. Remove the wheel speed sensor (2). Refer to SENSOR, WHEEL SPEED, FRONT, REMOVAL .
    Fig 5: Hub/Bearing Bolts
    GC0107541Courtesy of CHRYSLER GROUP, LLC
  6. Remove the hub bearing bolts (1) and the hub/bearing. Refer to HUB AND BEARING, REMOVAL .
    Fig 6: Disc Brake Rotor, Hub Extension & Axle Shaft Nut
    GC0107539Courtesy of CHRYSLER GROUP, LLC
  7. Remove the axle shaft nut (3) if equipped.
    Fig 7: Upper Ball Joint Nut
    GC0107534Courtesy of CHRYSLER GROUP, LLC
  8. Remove the upper ball stud nut (1).
    Fig 8: Upper Ball Joint & Wheel Speed Sensor Wire Bracket
    GC0107535Courtesy of CHRYSLER GROUP, LLC
  9. Remove the upper ball joint (2). Refer to BALL JOINT, SUSPENSION, UPPER, REMOVAL .
    Fig 9: Identifying Lower Ball Joint Nut
    GC0107547Courtesy of CHRYSLER GROUP, LLC
  10. Remove the lower ball joint nut (3).

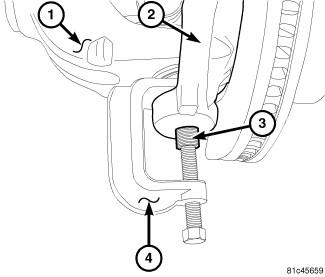

    Fig 10: Separating Lower Ball Joint From Knuckle
    GC0107548Courtesy of CHRYSLER GROUP, LLC
  11. Separate the lower ball joint (3) from the knuckle (2) using special tool (special tool #8677, Remover, Ball Joint) separator (4).
  12. Remove the steering knuckle (2).
    Fig 11: Dust Shield
    GC0107549Courtesy of CHRYSLER GROUP, LLC
  13. Remove the dust shield (2) from the knuckle if needed.
