Arm, Lower Control: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

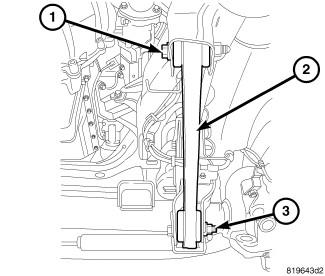

Fig 1: Identifying Axle, Frame Rail Bracket, & Lower Control Arm
GC0107517Courtesy of CHRYSLER GROUP, LLC
NOTE:

Discard the nuts and bolts and do not reuse. New nuts and bolts should be used when replacing or servicing the control arms.

  1. Position the lower control arm (2) at the axle bracket (3) and frame rail bracket (1).
  2. Install the rear bolt and finger tighten the nut.

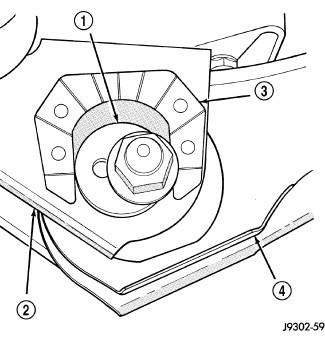

    Fig 2: Adjustment Cam
    GC0107518Courtesy of CHRYSLER GROUP, LLC
  3. Install the cam bolt (1), cam and nut in the axle and align the reference marks.
  4. Remove support and lower the vehicle.
  5. Tighten cam nut at the axle bracket and the rear nut at the frame bracket to specifications. Refer to SPECIFICATIONS . .
