Stabilizer Bar, Front: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

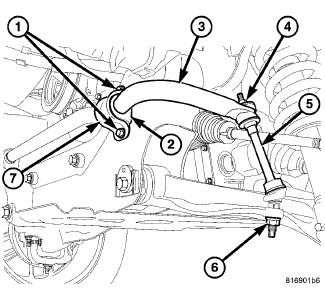

Fig 1: Stabilizer Bar, Grommets, Mounting Bolts, Retainers & Bushings

Courtesy of CHRYSLER GROUP, LLC

NOTE:

To service the stabilizer bar the vehicle should be on a drive on hoist. The vehicle suspension must be at curb height for stabilizer bar installation.

Remove the stabilizer bar link upper nuts and remove the retainers and grommets (4).
Remove the stabilizer bar mounting bolts (1) and discard the mounting bolts .
Remove the retainers (7) from the frame crossmember and remove the bar (3).
If necessary, remove the bushings (2) from the stabilizer bar (3), Do not cut the old bushings off the stabilizer bar use a mixture of soapy water in order to aid in sliding the bushing off .
