Spring, Front Coil: Removal: 4X2

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

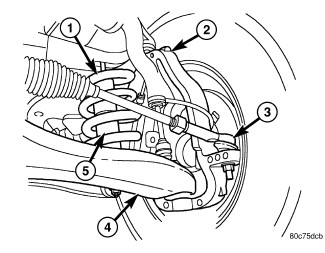

Fig 1: Coil Spring

Courtesy of CHRYSLER GROUP, LLC

Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the front wheel and tire assembly.
Support the lower control arm (4) at the outboard side of the lower control arm to support vehicle weight.
Remove the shock absorber (5). Refer to SHOCK ABSORBER, SUSPENSION, REMOVAL .

Fig 2: Coil Spring Compressor Tool
Courtesy of CHRYSLER GROUP, LLC
Install Front Spring Compressor (special tool #DD-1278, Compressor, Front Spring) (3) up through the lower suspension arm, coil spring and shock hole in the frame. The bell-shaped adapter (3) goes against the lower suspension arm. Install the nut on top of the tool at the shock hole.
Tighten the spring compressor nut against bell-shaped adapter finger tight then loosen 1/2 turn.
NOTE:
This will hold the spring in place until the lower suspension arm is separated from the steering knuckle.

Fig 3: Coil Spring Tool Support
Courtesy of CHRYSLER GROUP, LLC
Remove the steering knuckle. Refer to KNUCKLE, STEERING, REMOVAL .
Remove the stabilizer link. Refer to LINK, STABILIZER BAR, REMOVAL .
Remove the lower control arm support.
Tighten the spring compressor tool (2) to collapse the coil spring.
NOTE:
It may necessary to loosen the control arm pivot bolt to allow downward swing.
Loosen the tension on the spring compressor tool (2) slowly allowing the lower suspension arm to pivot downward.
Remove the spring compressor tool (2).
Remove coil spring (1) and isolator pad from the vehicle.
