Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Possible Causes
(A910/A118) FUSED B(+) CIRCUITS OPEN OR SHORTED
(Z915) GROUND CIRCUITS OPEN
(F202) IGNITION RUN/START CONTROL OUTPUT CIRCUIT OPEN OR SHORTED
(F1) IGNITION SWITCH OUTPUT (OFF-RUN-START) CIRCUIT OPEN OR SHORTED
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
POWERTRAIN CONTROL MODULE (PCM)

TEST FOR INTERMITTENT CONDITION
NOTE:
Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE:
  Make sure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, read the module status.
  NOTE:
  Check the TIPM for any active CAN hardware DTCs, perform DTC before proceeding.

  Does the scan tool indicate that the module is active on the bus?

  Yes
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  No
  - Go To 2.
(A910/A118) FUSED B(+) CIRCUITS OPEN OR SHORTED

Fig 1: Using 12-Volt Test Light To Check Fused B (+) Circuits
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.
3. Using a 12-volt test light connected to ground, check the (A910/A118) Fused B(+) circuits.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go To 3.
  No
  - Repair the open or short in the (A910/A118) Fused B(+) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST for 2500, or POWERTRAIN VERIFICATION TEST for 3500.
(Z915) GROUND CIRCUITS OPEN

Fig 2: Using 12-Volt Test Light To Check Ground Circuits
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z915) Ground circuits.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go To 4.
  No
  - Repair the open in the (Z915) Ground circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST for 2500, or POWERTRAIN VERIFICATION TEST for 3500.
(F202) IGNITION RUN/START CONTROL OUTPUT CIRCUIT OPEN OR SHORTED

Fig 3: Using 12-Volt Test Light To Check Ignition Run/Start Control Output Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F202) Ignition Run/Start Control Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 5.
  No
  - Repair the open or short in the (F202) Ignition Run/Start Control Output circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST for 500, or POWERTRAIN VERIFICATION TEST for 3500.
(F1) IGNITION SWITCH OUTPUT (OFF-RUN-START) CIRCUIT OPEN OR SHORTED

Fig 4: Using 12-Volt Test Light To Check Ignition Switch Output (Off-Run-Start) Circuit
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to ground, check the (F1) Ignition Switch Output (Off-Run-Start) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 6.
  No
  - Repair the open or short in the (F1) Ignition Switch Output (Off-Run-Start) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST for 2500, or POWERTRAIN VERIFICATION TEST for 3500.
(D65) CAN C BUS (+) CIRCUIT OPEN

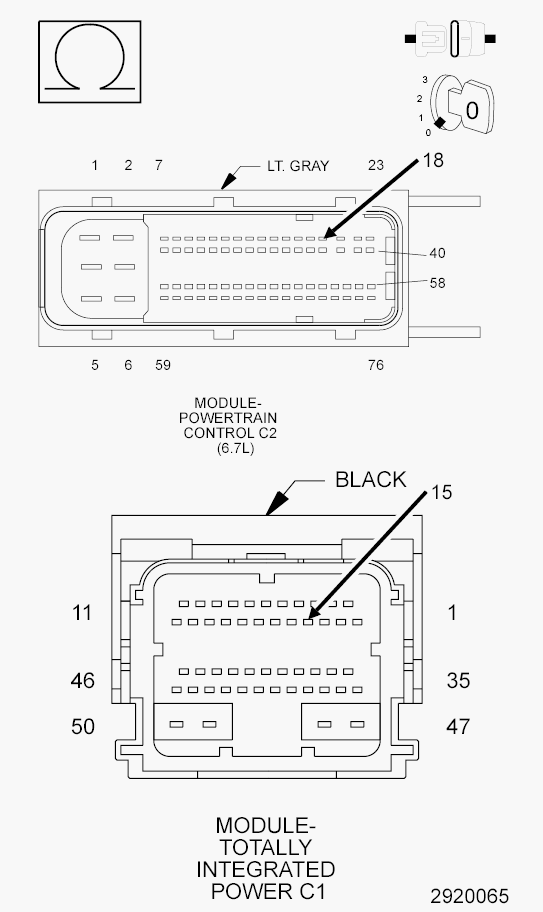

Fig 5: Measuring Resistance Of CAN C Bus (+) Circuit Between TIPM Harness Connector And PCM Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C1 harness connector and the PCM C2 harness connector.
  Is resistance below 5.0 Ohms?

  Yes
  - Go To 7.
  No
  - Repair the open in the (D65) CAN C Bus (+) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST for 2500, or POWERTRAIN VERIFICATION TEST for 3500.
(D64) CAN C BUS (-) CIRCUIT OPEN

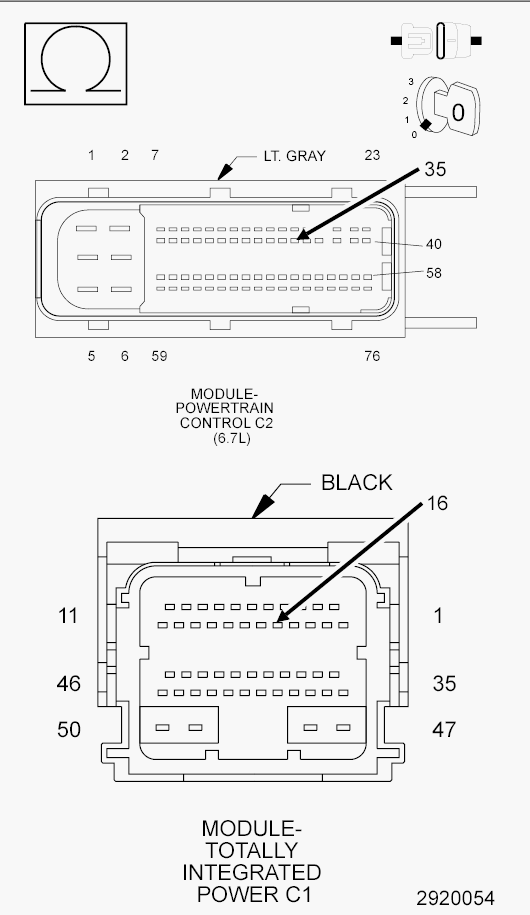

Fig 6: Measure Resistance Of CAN C Bus (-) Circuit Between TIPM Harness Connector And PCM Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C1 harness connector and the PCM C2 harness connector.
  Is resistance below 5.0 Ohms?

  Yes
  - Replace the PCM in accordance with the Service Information. Refer to MODULE, Powertrain Control , Removal MODULE, Powertrain Control, 6.7L Diesel [ETJ] , Removal .
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST for 2500, or POWERTRAIN VERIFICATION TEST for 3500.
  No
  - Repair the open in the (D64) CAN C Bus (-) circuit.
  - Perform the POWERTRAIN VERIFICATION TEST - 6.7L. Refer to Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST for 2500, or POWERTRAIN VERIFICATION TEST for 3500.
