Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

DIAGNOSTIC TROUBLE CODE (DTC) IS ACTIVE
1. Start the engine and allow it to reach normal operating temperature.
  WARNING:
  When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. Using the scan tool, select View DTCs.
  NOTE:
  If any communication or system voltage DTCs are present diagnose those DTCs before continuing with this test.

  Is the DTC Active at this time?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECKING AAT SENSOR
1. Turn the ignition off.
2. Disconnect the Ambient Air Temperature Sensor harness connector.
3. Ignition on, engine not running.
4. With a scan tool, read the AAT Sensor voltage.
  NOTE:
  The sensor voltage should be approximately 5.0 Volts (plus or minus 0.1 of a Volt) with the connector disconnected.

  Does the scan tool display the voltage as described above?

  Yes
  - Verify that there is good pin to terminal contact in the Sensor and Control Module connectors. Replace the Ambient Air Temperature Sensor if no problems were found with the connectors.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
(G31) AAT SIGNAL CIRCUIT SHORTED TO GROUND

Fig 1: Measuring Resistance Between Ground And AAT Sensor Signal Circuit In AAT Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C4 harness connector.
3. Measure the resistance between ground and the (G31) AAT Signal circuit in the AAT Sensor harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (G31) AAT Signal circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 4.
(G31) AAT SIGNAL CIRCUIT SHORTED TO THE (G931) SENSOR GROUND CIRCUIT

Fig 2: Measuring Resistance Between Sensor Return Circuit And Sensor Signal Circuit In AAT Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (G931) Sensor Ground circuit and the (G31) AAT Signal circuit in the AAT Sensor harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the short between the (G931) Sensor Ground circuit and the (G31) AAT Signal circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 5.
EXCESSIVE RESISTANCE IN THE (G31) AAT SIGNAL CIRCUIT

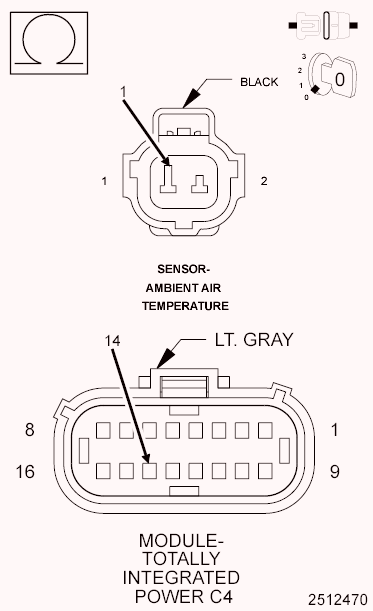

Fig 3: Checking For Excessive Resistance In AAT Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G31) AAT Signal circuit between the Ambient Air Temperature Sensor harness connector and the TIPM C4 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 6.
  No
  - Repair the excessive resistance in the (G31) AAT Signal circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
TOTALLY INTEGRATED POWER MODULE (TIPM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the AAT Sensor and the TIPM.
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Sensor and Control Module connectors.
4. Perform any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace and program the TIPM in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
