Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Windshield Wipers on.
4. With the scan tool read the DTC information.
  Does the scan tool read: B2313-WIPER ON/OFF CONTROL CIRCUIT LOW?

  Yes
  - Go To 2.
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
(W3) WIPER LOW SPEED CONTROL OUTPUT CONTROL CIRCUIT SHORTED TO GROUND

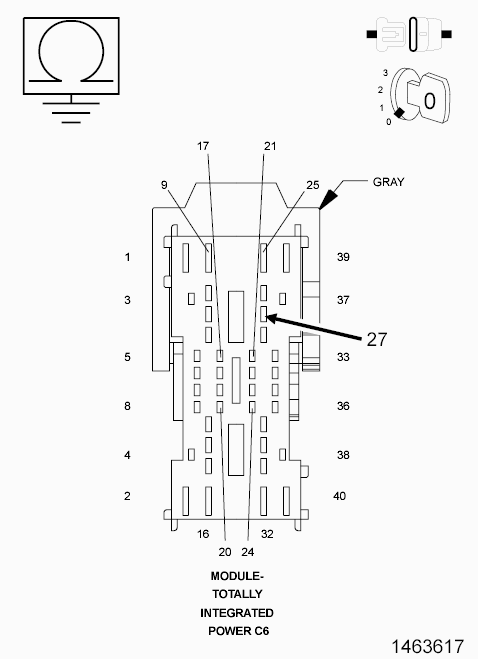

Fig 1: Wiper Low Speed Control Output Control Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C6 harness connector.
3. Disconnect the Wiper Motor harness connector.
4. Measure the resistance between ground and the (W3) Wiper Low Speed Control Output circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (W3) Wiper Low Speed Control Output circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
WIPER MOTOR
1. Reconnect the TIPM C6 harness connector.
2. Turn the ignition on.
3. With the scan tool, clear all TIPM DTCs.
4. Turn the Front Wipers on.
5. With the scan tool read the DTC information.
  Does the scan tool read: B2313-WIPER ON/OFF CONTROL CIRCUIT LOW?

  Yes
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace the Wiper Motor in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
