Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR ACTIVE DTC
    1. With the scan tool, read the active DTCs.
    2. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 30 seconds.
    3. With the scan tool, read the active DTCs.

      Does the scan tool display this DTC as active?

      Yes

      • Go To  2.

      No

      • If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
  2. A/C PRESSURE TRANSDUCER
    1. Turn the ignition off.
    2. Disconnect the A/C Pressure Transducer harness connector.
    3. Turn the ignition on.
    4. With the scan tool, read the active DTCs.

      Does the scan tool display this DTC as active?

      Yes

      • Go To  3.

      No

      • Replace the A/C Pressure Transducer in accordance with the service information.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST  .
  3. (C818) A/C PRESSURE 5-VOLT SUPPLY CIRCUIT SHORT TO VOLTAGE

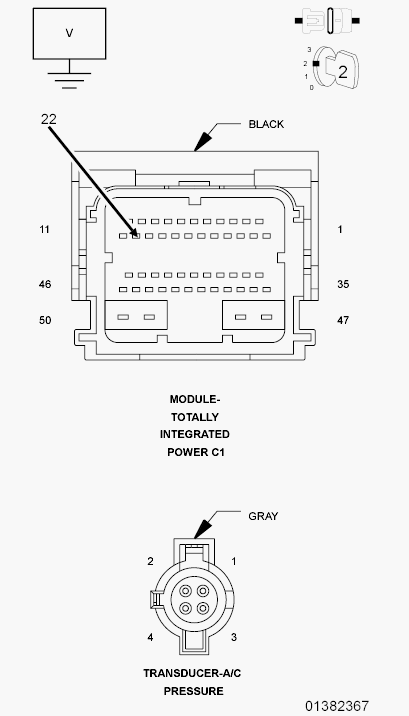

    Fig 1: Checking A/C Pressure 5-volt Supply Circuit
    GC0091097Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the TIPM C1 harness connector.
    3. Turn the ignition on.
    4. Measure the voltage of the (C818) A/C Pressure 5-volt Supply Circuit at the TIPM C1 harness connector.

      Is the voltage above 10.0 volts?

      Yes

      • Repair the (C818) A/C Pressure 5-volt Supply Circuit for a short to voltage.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST  .

      No

      • Go To  4.
  4. (C818) A/C PRESSURE 5-VOLT SUPPLY CIRCUIT OPEN

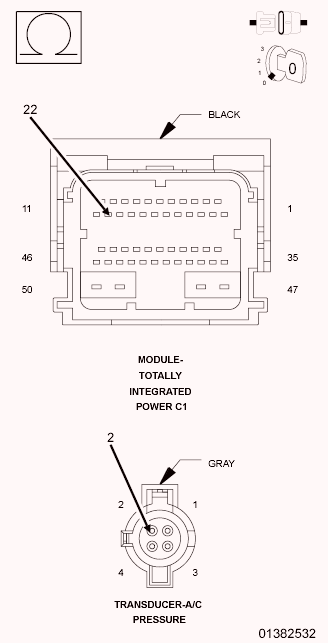

    Fig 2: Checking A/C Pressure 5-volt Supply Circuit
    GC0091098Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Measure the resistance of the (C818) A/C Pressure 5-volt Supply Circuit.

      Is the resistance below 5.0 Ohms?

      Yes

      • Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST  .

      No

      • Repair the (C818) A/C Pressure 5-volt Supply Circuit for an open.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST  .
