Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR ACTIVE DTC
1. With the scan tool, read the active DTCs.
2. Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 30 seconds.
3. With the scan tool, read the active DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go To 2.
  No
  - If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
A/C PRESSURE TRANSDUCER
1. Turn the ignition off.
2. Disconnect the A/C Pressure Transducer harness connector.
3. Turn the ignition on.
4. With the scan tool, read the active DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go To 3.
  No
  - Replace the A/C Pressure Transducer in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
(C818) A/C PRESSURE 5-VOLT SUPPLY CIRCUIT SHORT TO GROUND

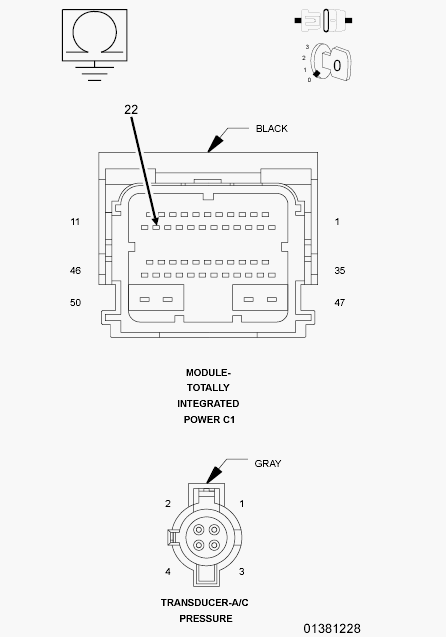

Fig 1: Checking A/C Pressure 5-volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance between ground and the (C818) A/C Pressure 5-volt Supply Circuit at the TIPM C1 harness connector.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (C818) A/C Pressure 5-volt Supply Circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
