Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Headlamps on.
4. With the scan tool, read DTCs.
  Does the scan tool display DTC B162F-RIGHT LOW BEAM CONTROL CIRCUIT LOW?

  Yes
  - Go To 2.
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
(L44) RIGHT LOW BEAM DRIVER CIRCUIT

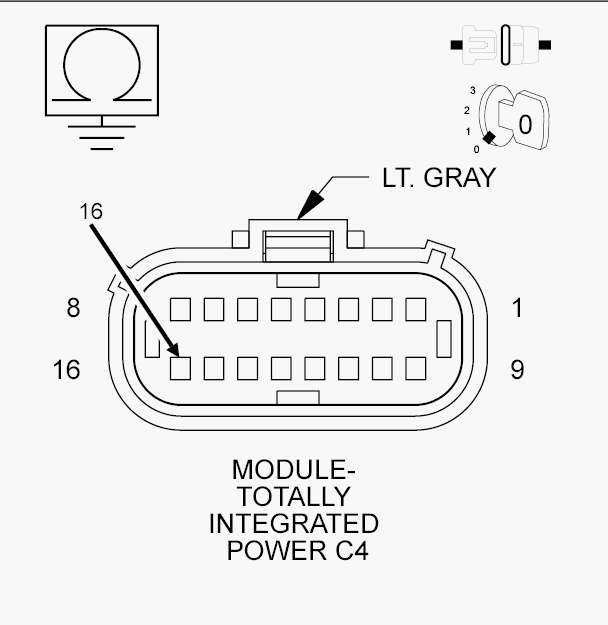

Fig 1: Checking Right Low Beam Driver Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C4 harness connector.
3. Disconnect the Right Headlamp Lamp harness connector.
4. Measure the resistance between ground and the (L44) Right Low Beam Driver circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the short to ground in the (L44) Right Low Beam Driver circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
