Diagnostic Test
WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- TEST FOR INTERMITTENT CONDITION
- With the scan tool, record and erase DTCs.
- Operate the Driver Door Lock Switch in all positions several times.
- Cycle the ignition from on to off.
- Turn the ignition on.
- With the scan tool, read DTCs.
Does the scan tool display B1801-DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT LOW?
Yes
- Go To 2.
No
- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
- CHECK THE DRIVER DOOR LATCH FOR AN INTERNAL SHORT
- With the scan tool, erase DTCs.
- Turn the ignition off.
- Disconnect the Driver Door Latch harness connector.
- Turn the ignition on.
- With the scan tool, read DTCs.
Does the scan tool display B1801-DRIVER DOOR LOCK/UNLOCK SWITCH CIRCUIT LOW as active?
Yes
- Go To 3.
No
- Replace the Driver Door Latch in accordance with the Service Information. Refer to LATCH, Door , Removal .
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

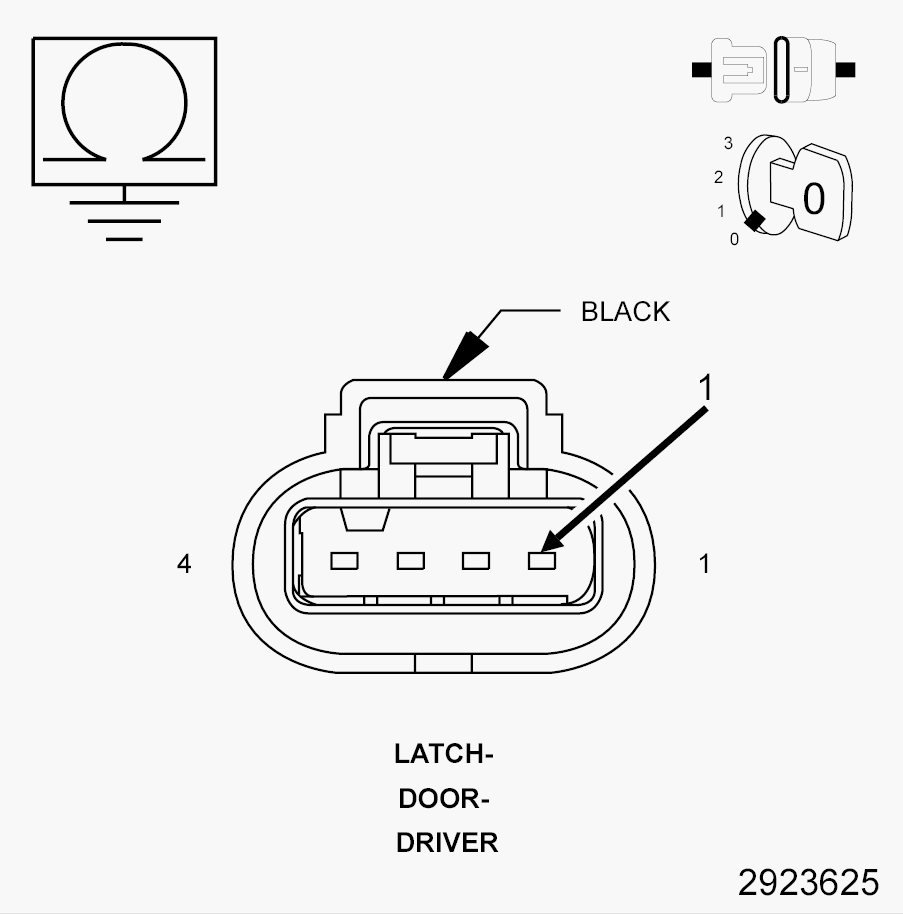

- CHECK THE (P1) DRIVER DOOR UNLOCK DRIVER CIRCUIT FOR A SHORT TO GROUND
- Turn the ignition off.
- Disconnect the TIPM C6 harness connector.
- Measure the resistance between ground and the (P1) Driver Door Unlock Driver circuit.
Is the resistance above 10k Ohms?
Yes
- Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information. Refer to MODULE, Totally Integrated Power (TIPM) , Removal .
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
No
- Repair the short to ground in the (P1) Driver Door Unlock Driver circuit.
- Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
