Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all DTCs.
3. Turn the High Beam Headlamps on.
4. With the scan tool, read DTCs.
  Does the scan tool display DTC: B1633-LEFT HI BEAM CONTROL CIRCUIT LOW?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
ATTEMPT TO SET THE OPPOSITE DTC
1. Turn the ignition off.
2. Disconnect the Left Headlamp Lamp harness connector.
3. Turn the ignition on.
4. With the scan tool, read DTCs.
  Does the scan tool display DTC: B1634-LEFT HI BEAM CONTROL CIRCUIT HIGH?

  Yes
  - Replace the Left High Beam Bulb in accordance with the Service Information. Refer to UNIT, Front Lamp , Removal .
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
CHECK THE (L33) LEFT HIGH BEAM DRIVER CIRCUIT FOR A SHORT TO GROUND

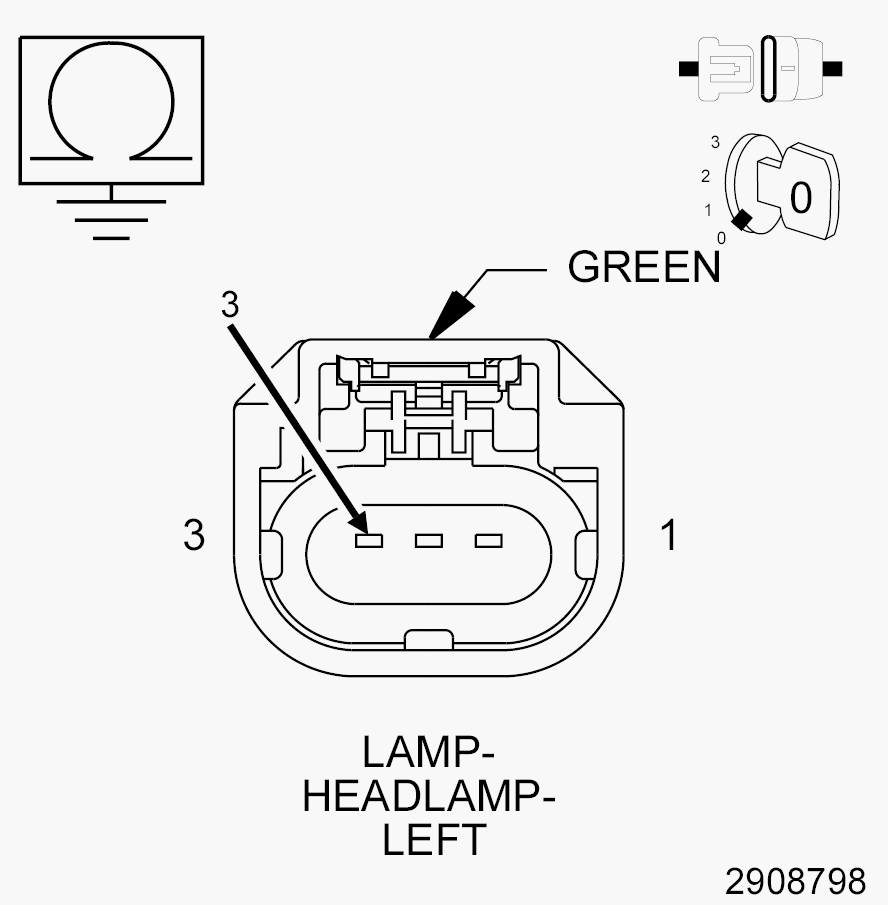

Fig 1: Checking Left High Beam Driver Circuit For A Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C3 harness connector.
3. Measure the resistance between ground and the (L33) Left High Beam Driver circuit.
  Is the resistance above 10k Ohms?

  Yes
  - Go To 4.
  No
  - Repair the short to ground in the (L33) Left High Beam Driver circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK THE (L33) LEFT HIGH BEAM DRIVER CIRCUIT FOR A SHORT TO THE (L911) LEFT HEADLAMP RETURN SIGNAL CIRCUIT

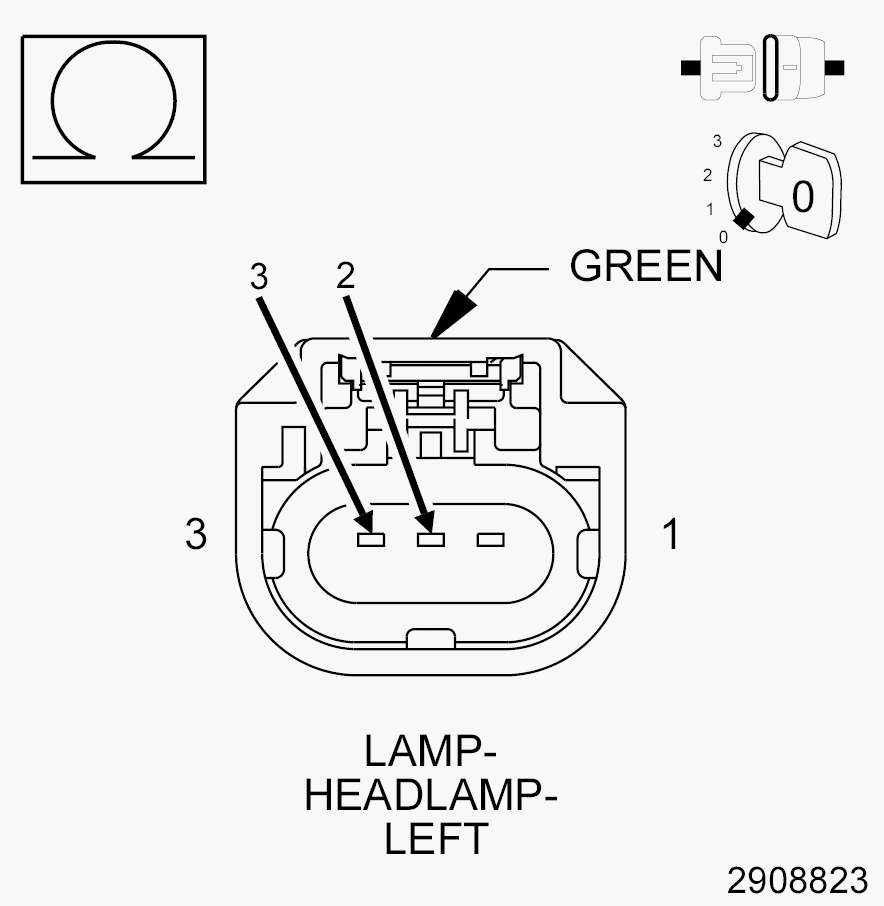

Fig 2: Checking Left High Beam Driver Circuit For A Short To Left Headlamp Return Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (L33) Left High Beam Driver circuit and the (L911) Left Headlamp Return Signal circuit.
  Is the resistance above 10k Ohms?

  Yes
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information. Refer to MODULE, Totally Integrated Power (TIPM) , Removal .
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair the short between the (L33) Left High Beam Driver circuit and the (L911) Left Headlamp Return Signal circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
