Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all DTCs.
3. Turn the Headlamps on.
4. With the scan tool, read DTCs.
  Does the scan tool display DTC: B162F-RIGHT LOW BEAM CONTROL CIRCUIT LOW?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
ATTEMPT TO SET THE OPPOSITE DTC
1. Turn the ignition off.
2. Disconnect the Right Headlamp Lamp harness connector.
3. Turn the ignition on.
4. With the scan tool, read DTCs.
  Does the scan tool display DTC: B1630-RIGHT LOW BEAM CONTROL CIRCUIT HIGH?

  Yes
  - Replace the Right Low Beam Bulb in accordance with the Service Information. Refer to UNIT, Front Lamp , Removal .
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
CHECK THE (L44) RIGHT LOW BEAM DRIVER CIRCUIT FOR A SHORT TO GROUND

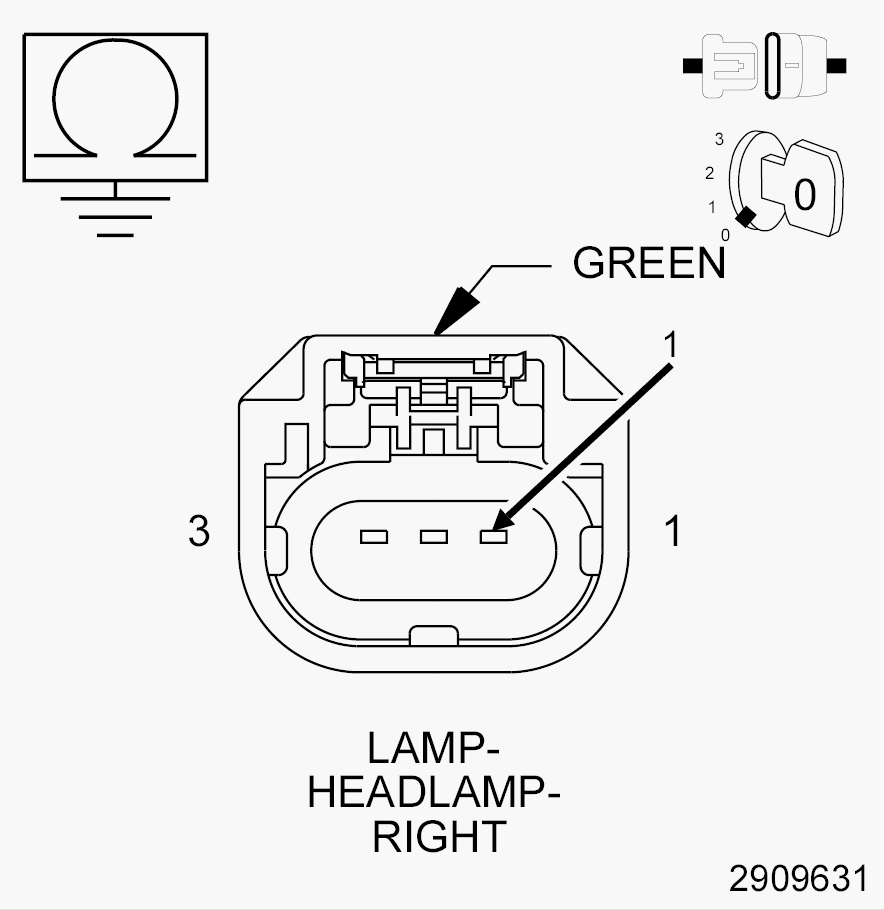

Fig 1: Checking Right Low Beam Driver Circuit For A Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C3 harness connector.
3. Measure the resistance between ground and the (L44) Right Low Beam Driver circuit.
  Is the resistance above 10k Ohms?

  Yes
  - Go To 4.
  No
  - Repair the short to ground in the (L44) Right Low Beam Driver circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
CHECK THE (L44) RIGHT LOW BEAM DRIVER CIRCUIT FOR A SHORT TO THE (L910) RIGHT HEADLAMP RETURN SIGNAL CIRCUIT

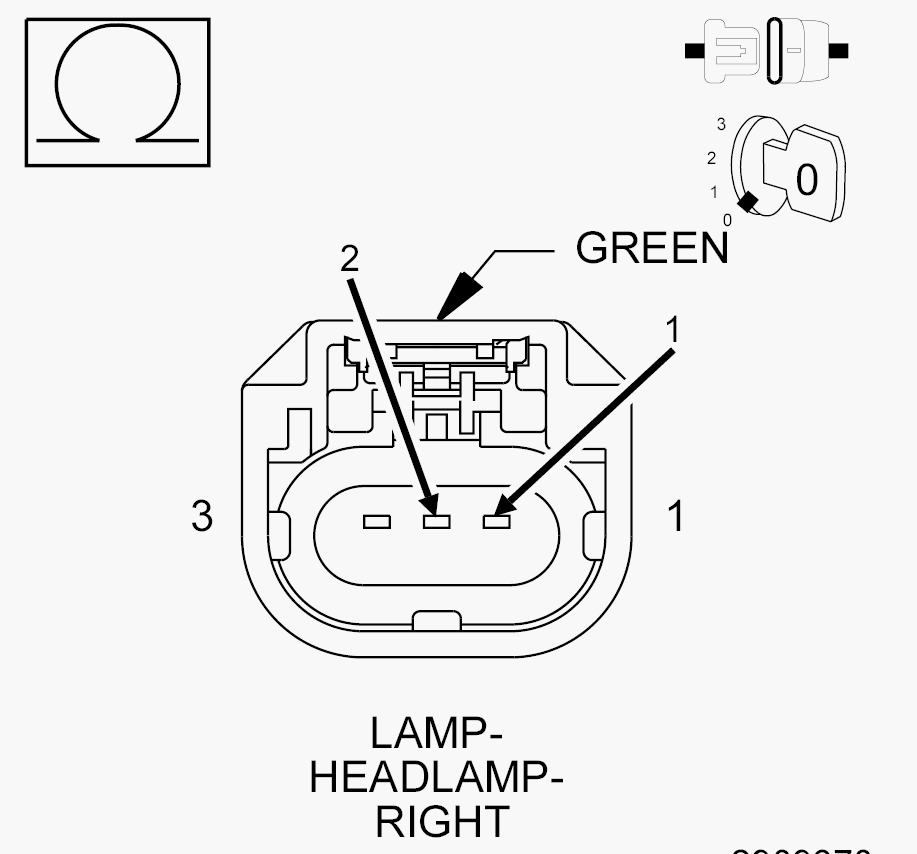

Fig 2: Checking Right Low Beam Driver Circuit For A Short To Right Headlamp Return Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (L44) Right Low Beam Driver circuit and the (L910) Right Headlamp Return Signal circuit.
  Is the resistance above 10k Ohms?

  Yes
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information. Refer to MODULE, Totally Integrated Power (TIPM) , Removal .
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair the short between the (L44) Right Low Beam Driver circuit and the (L910) Right Headlamp Return Signal circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
